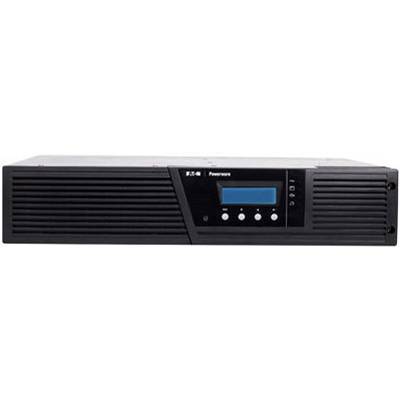

Аварийно захранване eaton 9130 2000 rm - 103006457-6591

Основни характеристики:
Topology: Online, double-conversion
Configuration: Rackmount
Part Number: 103006457-6591
Color: Black
Rating (VA/Watts): 2000/1800
Diagnostics: Full system self-test
Efficiency: 94% in high-efficiency mode; 91% in online mode
UPS Bypass: Automatic bypass
Rail Kit Included: Yes
Remote Emergency Power off (REPO): Emergency shutdown control through the REPO port

---

Входящо напрежение:
Connection: C14
Input Cord: Schuko 10A to IEC 320-10A
Input Voltage Range: 180-276 Vac (with load PF of 0.7)
Nominal Voltage: 220-240 V
Frequency: 50/60 Hz
Frequency Range: 45–65 Hz
Nominal Current: 8.7A @230V
Breaker Ratings: 10A

---

Изходящо напрежение:
Output Receptacles: (8) C13, (1) C19
On Utility Voltage Regulation: ±3% of nominal
On Battery Voltage Regulation: ±3% of nominal
Power Factor: 0.9
Frequency Regulation: ±3% Hz online
Load Crest Factor: 3 to 1

---

Батерия:
Battery Description: VRLA 12V/9 Ah (internal and External)
Battery Type: Replaceable maintenance free sealed lead acid
Half Load Runtime (in mins): 25
Full Load Runtime (in mins): 10
Battery Replacement: Hot-swappable internal batteries
Start On Battery: Allows start of UPS without utility input

---

Communications:
User Interface: Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish
LEDs: Four status-indicating LEDs
Communication Ports: RS-232 and USB HID port as standard
Relay Output: Common alarm standard
Communications Slot: Optional communication slots (BD Slot)
Communications Card Slots: Optional SNMP/Web card for monitoring in SNMP-based networks, monitoring through Web browser interface. Relay card for integration to industrial environment and BMS, remote shutdown for IBM AS/400 systems

---

Environmental & Standards:
Heat Dissipation (BTU): Line: 838, Bat: 1348
Audible Noise: <44 dB
Operating Temperature: 0˚C to +40˚C
Performance - Safety - EMC: CE (per IEC/EN62040-2: Emissions, Category C1; Immunity, Category C2), GS
Storage Temperature: -20˚C to +40˚C with batteries and -25˚C to +55˚C without batteries
Relative Humidity: 5–90% non-condensing

---

Размери (H x W x D): 86.5 x 438 x 600 mm
Тегло: 29 kg


Гаранция: 24 месеца
