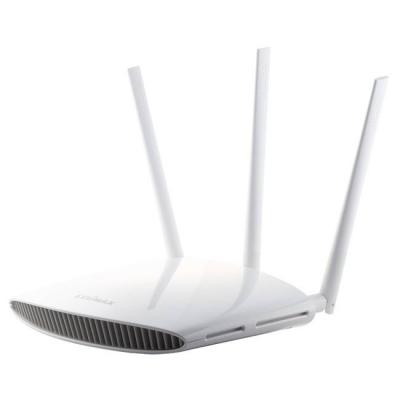

Безжичен access point edimax ew-7208apc, dual-band ac750, 5 в 1, edim-ew-7208apc

FUNCTIONS

HARDWARE INTERFACE

MANAGEMENT & INSTALLATION

•Supports access point, range extender, wireless bridge, Wi-Fi router and WISP modes
•Guest network
•Up to 8 SSIDs (2.4GHz x 4 and 5GHz x 4) with VLAN support in AP mode
•Wi-Fi access control
•Wi-Fi schedule control
•Fault tolerance firmware upgrade

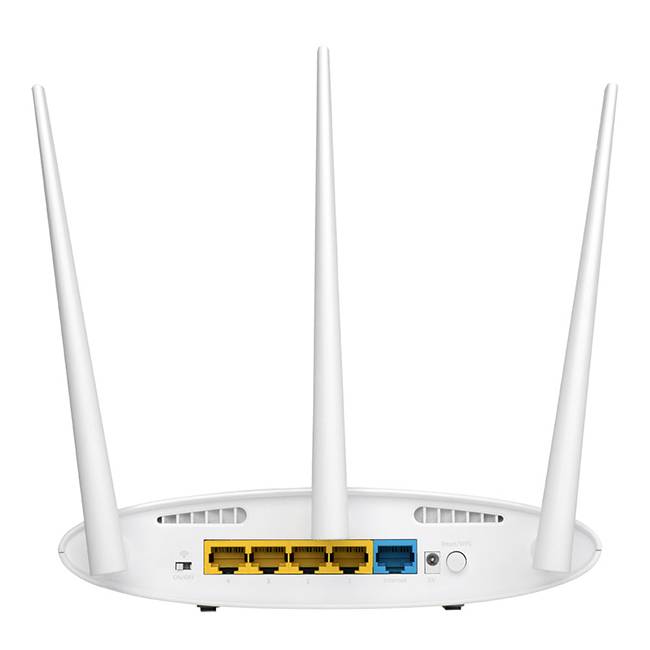

•1 x RJ-45 10/100M WAN port
•4 x RJ-45 10/100M LAN port
•LED indicators: power, Internet, 2.4GHz wireless, 5GHz Wireless
•2 x 2.4GHz detachable antennas and 1 x 5GHz detachable antenna
•WPS/Reset button
•Wireless on/off switch

•Multi-language user interface
•Firmware upgradable
•Smart iQ Setup, no CD required
•Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup)

SECRITY

OUTPUT POWER & SENSITIVITY GAIN (5GHz)

OUTPUT POWER & SENSITIVITY GAIN (2.4GHz)

•Supports WPS (Wi-Fi Protected Setup)
•64/128-bit WEP encryption, WPA and WPA2 security
•QoS for critical operations
•SPI anti-DoS firewall

Output Power
•11a(54Mbps): 16±1.5dBm
•11n(20MHz, MCS7): 16±1.5dBm
•11n(40MHz, MCS7): 16±1.5dBm
•11n(80MHz, MCS9): 14±1.5dBm
Receive Sensitivity
•11a(54Mbps): ‐69±2dBm
•11n(20MHz, MCS7): ‐68±2dBm
•11n(40MHz, MCS7): ‐64±2dBm
•11n(80MHz, MCS9): -57±2dBm

Output Power
•11b (11Mbps): 18±1.5dBm
•11g (54Mbps): 17±1.5dBm
•11n (20MHz, MCS7): 16±1.5dBm
•11n (40MHz, MCS7): 16±1.5dBm
Receive Sensitivity
•11b(11Mbps): ‐83±2dBm
•11g (54Mbps): ‐69±2dBm
•11n(20MHz, MCS7): ‐67±2dBm
•11n(40MHz, MCS7): ‐64±2dBm

POWER ADAPTER

MEMORY

HUMIDITY & TEMPERATURE

•DC 5V, 1.5A

•4MB NOR Flash
•64MB RAM

•10-90% (non-condensing)
•0-40oC

DIMENSIONS

WEIGHT

 CERTIFICATIONS

•190.2mm x 141mm x 42mm

•260g

•FCC/CE
