Видео карта sapphire nitro r9 390 8g d5 - 11244-00

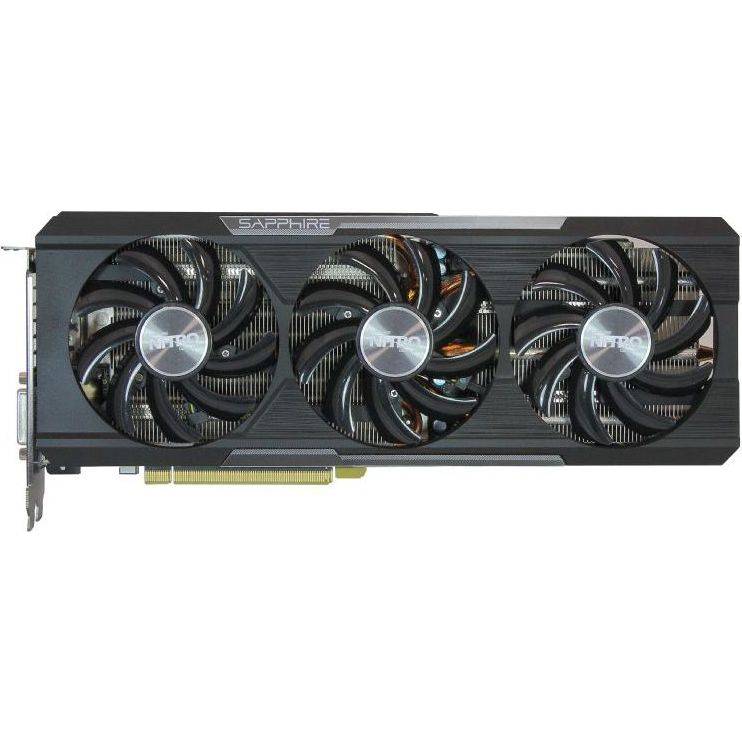

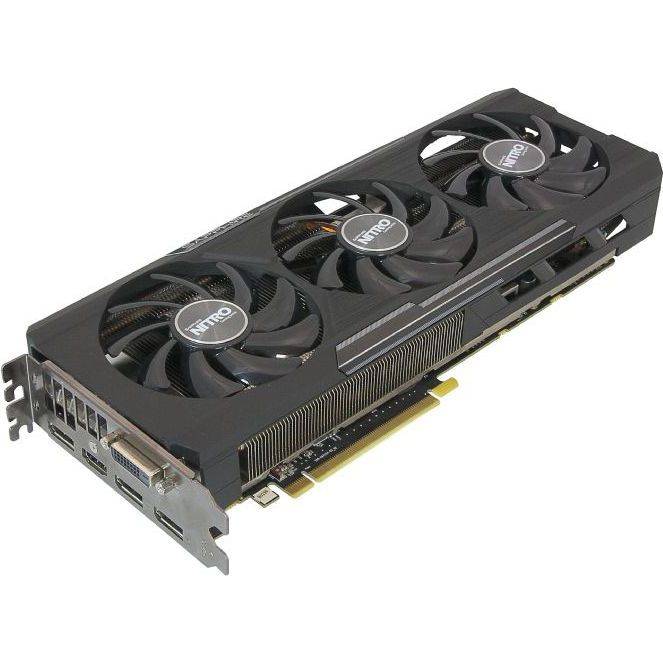

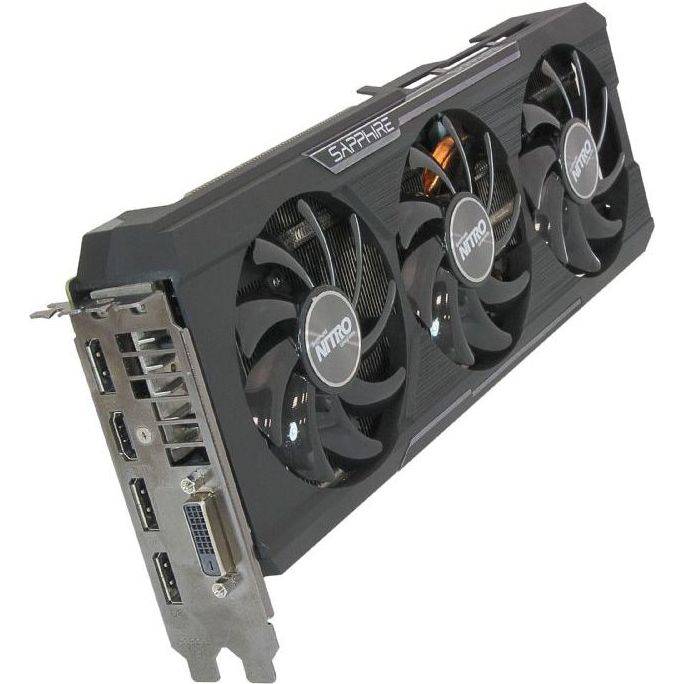

Видео карта SAPPHIRE NITRO R9 390 8G D5 - 11244-00

Новите R9 390X видео карти на AMD са ребрандирани Radeon R9-290/X графични ускорители със завишени тактови честоти и малко по-бързи чипове памет, както и с известни оптимизации.

Поддържат се технологиите DirectX 12, LiquidVR, Mantle, OpenGL 4.5, Vulkan, AMD Eyefinity, AMD Freesync и др.

Фирмената система Fan Control следи натоварването на картата и при ниско ниво, вентилаторите спират, което означава, че картата става практически безшумна.

Спецификация

• GPU
2560 Stream Processors
28 nm
Graphics Core Next (GCN)
1010 MHz Engine Clock

• Interface
PCI-Express 3.0

• Memory
512 bit Memory Bus
GDDR5 Memory Type
8192 MB Size

• Displays
Maximum 5 Outputs

• Output
1 x DVI-I
1 x HDMI
3 x DisplayPort

• Resolution
4096x2160 Pixel DisplayPort Resolution
2560x1600 Pixel Dual Link DVI Resolution
1920 x1200 Pixel Single Link DVI Resolution
2160P HDMI Resolution

• API
OpenGL® 4.5
OpenCL 2.0
DirectX® 12
Shader Model 5.0

• Feature
AMD CrossFire
AMD PowerTune
AMD ZeroCore Power Technology
FreeSync Technology
AMD Eyefinity
Quad HD Display (4K*2K Support)
Video Codec Engine (VCE)
AMD HD3D Technology
Component Heat Spreader
16K Hours Capacitor
Black diamond choke
Intelligent Fan Control
10mm Heat Pipe
Dual BIOS
AMD Liquid VR technology
AMD Virtual Super Resolution(VSR)
AMD TrueAudio technology
Universal Video Decoder (UVD)
Sapphire LED indicator

• Cooling
Tri-X fans
Two-ball bearing

• Form Factor
2.2 Part Slot Occupied
308 X 127 X 42.3 Dimension /mm

• Power Consumption
375W

• OS
Windows 10　Windows 8/8.1　Windows 7　

• System Requirement
750 Watt Power Supply (Suggestion)
2 x 8-pin AUX Power Connector
CD-ROM or DVD-ROM drive for installing software
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
