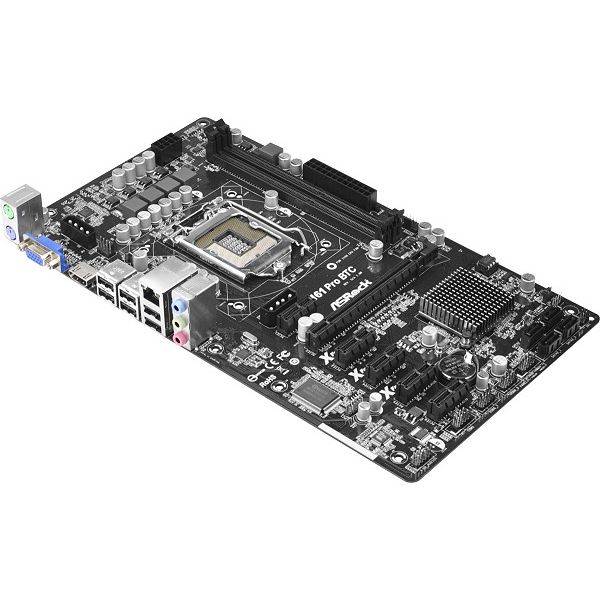

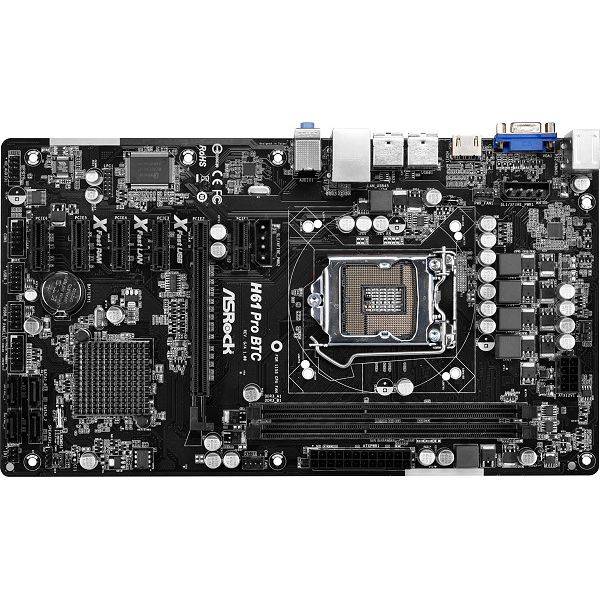

Дънна платка asrock h61 pro btc - bitcoin mining / lga1155

Дънна платка ASROCK H61 PRO BTC - BITCOIN MINING / LGA1155

Тази дънна платка е специално проектирана за „копаене“ на Bitcoin-и, революционната дигитална крипто-валута, която може да бъде ползвана навсякъде по света. Вградените на дъното PCIe слотове гарантират бързо GPU „копаене“, докато допълнителните енергийни конектори осигуряват отлична системна стабилност докато се „изравят“ нови биткоини.

Сравнено с конкурентните 3 Power Phase дизайни на дънните платки, ASRock добавя усещане за завършеност като имплементира 4 Power Phase дизайн и здрави компоненти за доставянето на гладка енергия към процесора, като по този начин увеличава производителността и стабилността на дънната платка при ниски температури.

ASRock е избрала да ползва висококачествени материали за изграждането на своите най-добри дънни платки, като това е причината всички кондензатори на това дъно да са 100% солидни кондензатори. Тези солидни кондензатори осигуряват дълготраен живот и утра стабилна производителност.

За разлика от традиционните дънни платки, които ползват аналогово захранване, тази дънна платка ползва следващо поколение PWM (Пулсово-широчинна модулация), който предоставя по-ефективен и гладък пренос на Vcore волтаж до процесора, така че стабилността и живота на дънната платка се увеличава значително.

С екслузивната технология на ASRock Fast Boot, отнема по-малко от 1.5 секунди* за да се влезе в Windows® 8 от студено стартиране. Без повече чакане! Бързото първоначално зареждане ще промени напълно вашето потребителско изживяване и навици.

Supports 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 package
100% All Solid Capacitor design
Supports Dual Channel DDR3 1600
1 x PCIe 3.0 x16, 5 x PCIe 2.0 x1
Graphics Output Options : D-Sub, HDMI
Realtek Gigabit LAN
5.1 CH HD Audio (VIA® VT1705 Audio Codec)
4 x SATA2, 10 x USB 2.0 (4 Front, 6 Rear)
Supports XFast 555, Dehumidifier, OMG, Fast, Restart to UEFI

Спецификация

CPU
- Supports 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 package
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPUs
- Supports Hyper-Threading Technology

Chipset
- Intel® H61
- Supports Intel® Rapid Start Technology and Smart Connect Technology
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Memory
- Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**DDR3 1600 with Intel® Ivy Bridge CPU, DDR3 1333 with Intel® Sandy Bridge CPU.

BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage multi-adjustment

Audio, Video and Networking Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
- Two graphics output options: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

***Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio
- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity Slots
- 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
- 5 x PCI Express 2.0 x1 Slots

*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.

Storage
- 4 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
- 1 x IR Header
- 1 x COM Port Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 2 x SLI/XFire Power Connectors
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

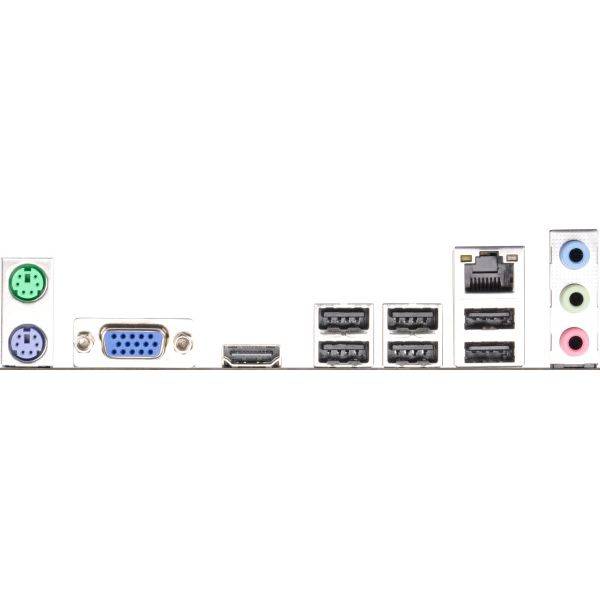

Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 6 x USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Dehumidifier Function
- ASRock Fast Boot
- ASRock Restart to UEFI
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Hardware Monitor
- CPU temperature sensing
- Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- ATX Form Factor: 12.0-in x 6.8-in, 30.5 cm x 17.3 cm
- All Solid Capacitor design

OS
- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
