Дънна платка asrock x470 gaming k4, atx, amd am4 socket, amd promontory x470, ddr4

Дънна платка ASROCK X470 GAMING K4, ATX, AMD AM4 Socket, AMD Promontory X470, DDR4

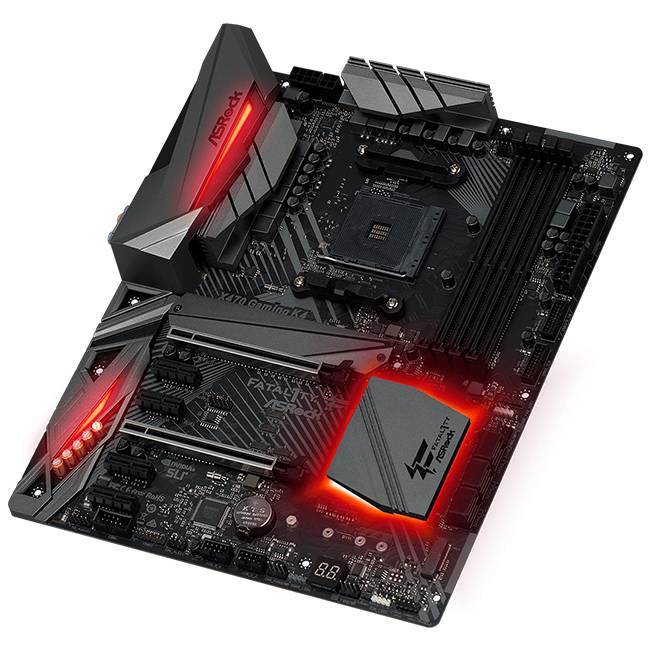

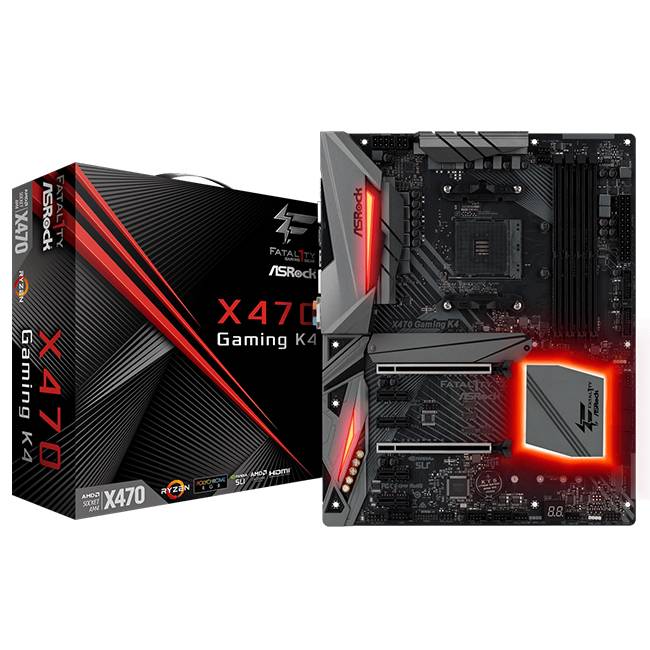

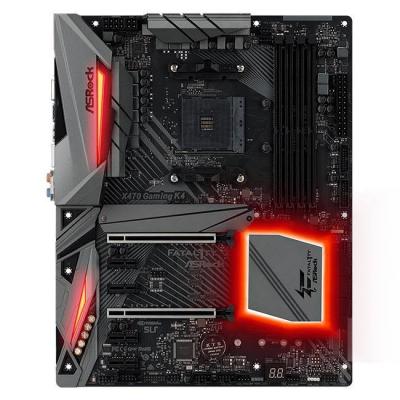

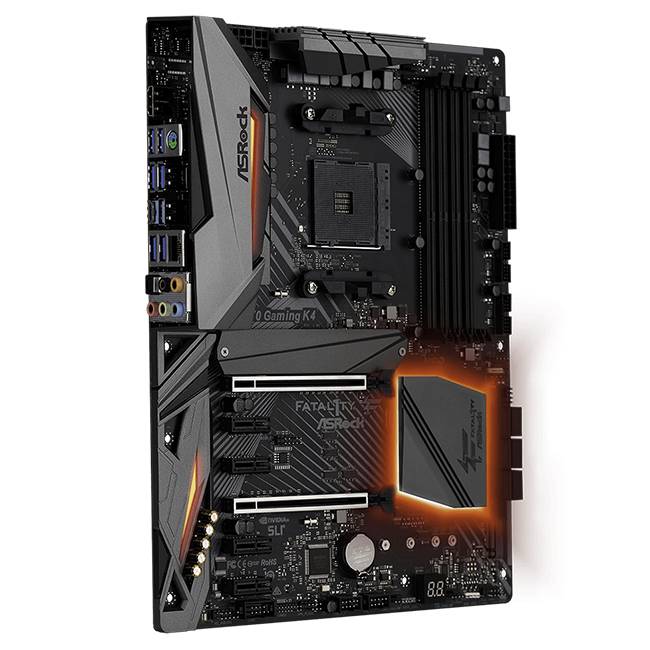

ASROCK X470 GAMING K4
Product ID: 59433
Mnfr. Part#: X470 GAMING K4

• Сокет: AM4

• Видео: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Max. shared memory 2GB; - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP with HDMI Port; - Supports 4K Ultra HD (UHD) playback with HDMI Port

• Съвместими процесори: - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge); - Digi Power design; - 12 Power Phase design; - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)

• Чипсет: AMD Promontory X470

• Слотове за разширение: AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge); - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))*; AMD Ryzen series CPUs (Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*; - 4 x PCI Express 2.0 x1 Slots; - Supports AMD Quad CrossFireX™ and CrossFireX™**; - Supports NVIDIA® Quad SLI™ and SLI™**; - 15? Gold Contact in VGA PCIe Slot (PCIE1)

• Дисков интерфейс: - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug` - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*` - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)*

• Тип памет: - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - 15? Gold Contact in DIMM Slots

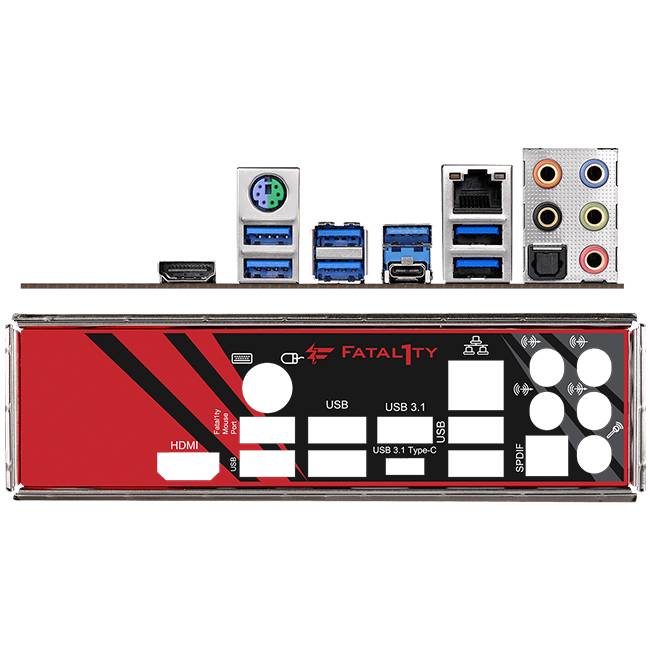

• Портове: - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)*; - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

• Конектори: - 1 x COM Port Header; - 1 x TPM Header; - 1 x Power LED and Speaker Header; - 1 x AMD Fan LED Header*; - 1 x RGB LED Header**; - 1 x Addressable LED Header***; - 1 x CPU Fan Connector (4-pin)****; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x AMD LED Fan USB Header; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection); - 1 x Dr. Debug with LED

• Аудио: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - Nichicon Fine Gold Series Audio Caps; - 120dB SNR DAC with Differential Amplifier; - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets); - Pure Power-In; - Direct Drive Technology; - PCB Isolate Shielding; - Impedance Sensing on Line Out port; - Individual PCB Layers for R/L Audio Channel; - Gold Audio Jacks; - Supports Creative Sound Blaster™ Cinema 5

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - GigaLAN Intel® I211AT; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

• BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment

• Форм фактор: ATX

• ОС: - Microsoft® Windows® 10 64-bit

https://www.asrock.com/MB/AMD/Fatal1ty%20X470%20Gaming%20K4/index.asp#Specification
