Дънна платка asrock z270 gaming k4, lga 1151, ddr4, pci express

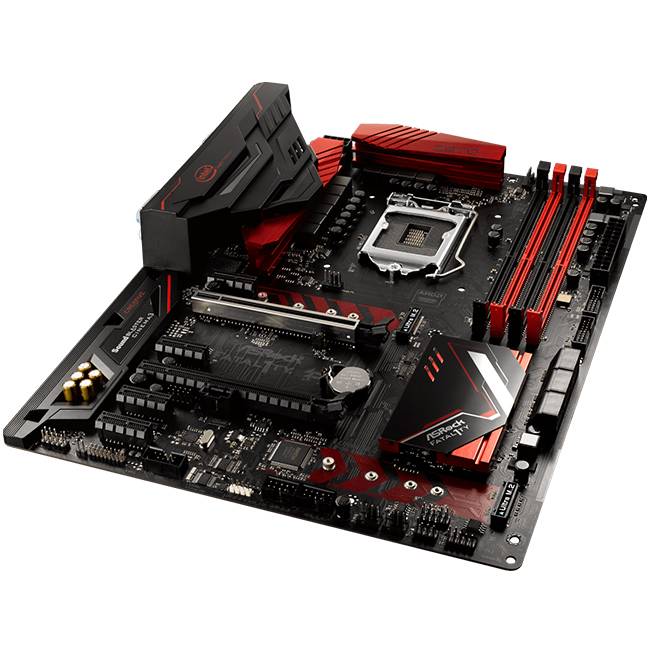

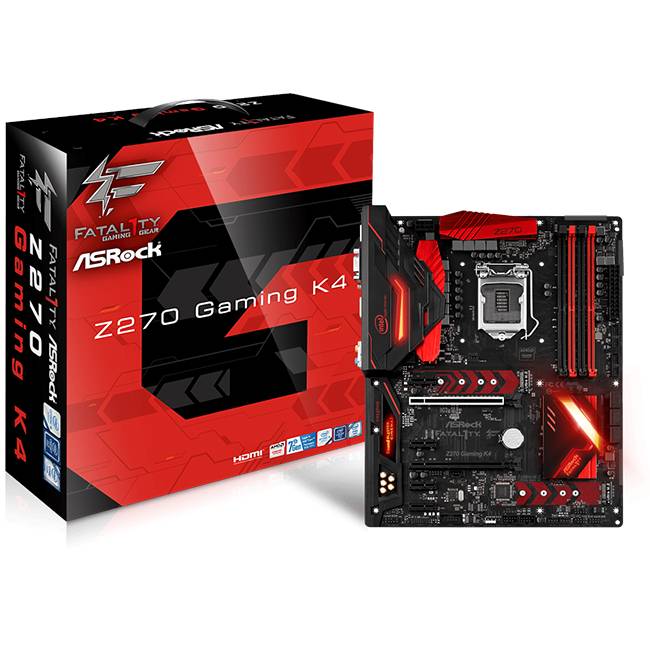

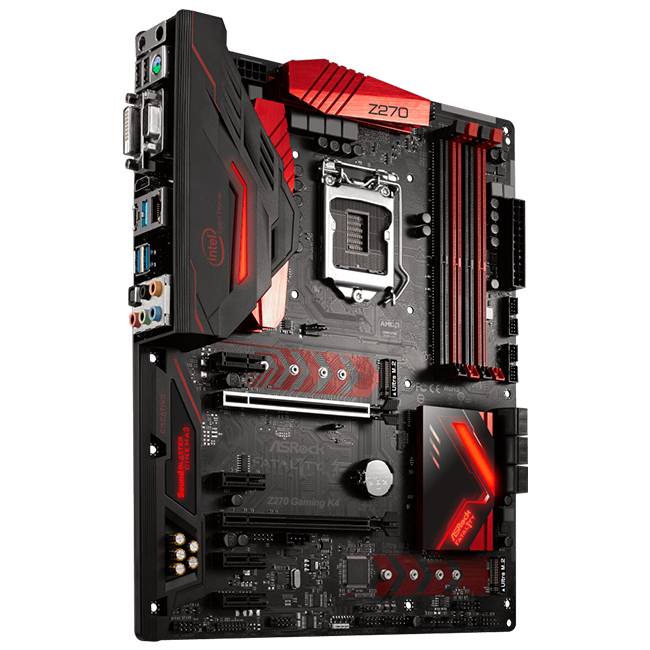

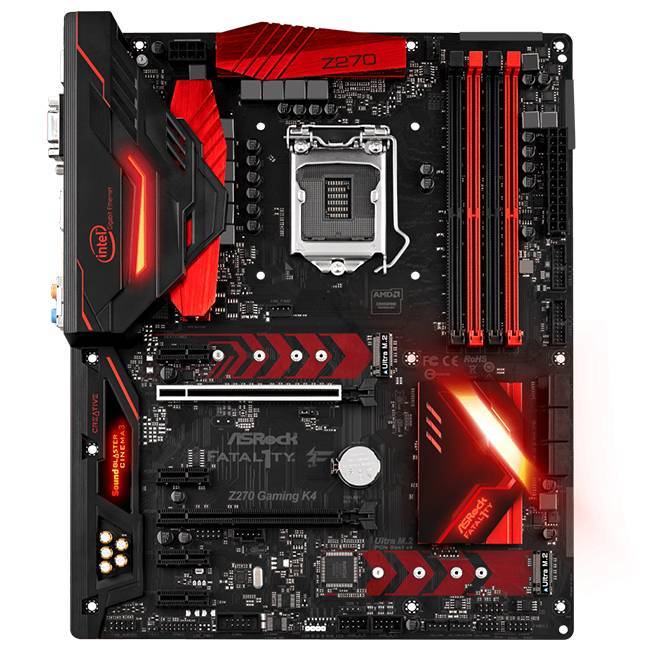

ASROCK Z270 GAMING K4
Product ID: 57888
Mnfr. Part#: Z270 GAMING K4

• Socket: 1151

• Graphics: -Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics; - Gen9 LP, DX11.3, DX12; - HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU); - HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU); - Max. shared memory 1024MB*; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP with DVI-D and HDMI Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

• CPU`s supported: Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151); Digi Power design; 8 Power Phase design; Supports Intel® Turbo Boost 2.0 Technology; Supports Intel® K-Series unlocked CPUs; Supports ASRock BCLK Full-range Overclocking

• Chipset: Intel® Z270

• Expansion Slots: 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*; 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)**; Supports AMD Quad CrossFireX™ and CrossFireX™; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module***; 15? Gold Contact in VGA PCIe Slot (PCIE2)

• Storage: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug**; 2 x Ultra M.2 Sockets, support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

• Memory type: Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; Supports DDR4 3733+(OC)*/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, un-buffered memory; Supports ECC UDIMM memory modules (operate in non-ECC mode); Max. capacity of system memory: 64GB***; Supports Intel® Extreme Memory Profile (XMP) 2.0; 15? Gold Contact in DIMM Slots

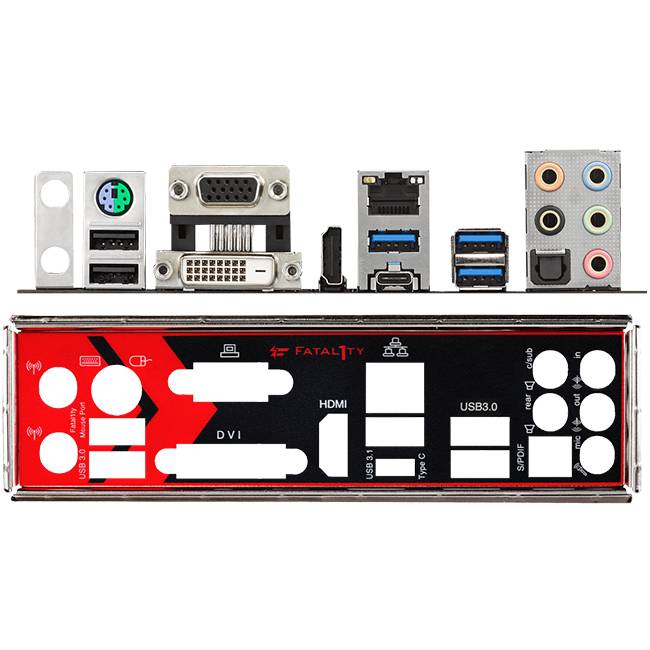

• I/O: 2 x Antenna Ports; 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)); 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)); 3 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)); 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

• Connectors: 1 x COM Port Header; 1 x TPM Header; 1 x Chassis Intrusion Header; 1 x Power LED and Speaker Header; 1 x AURA RGB LED Header*; 1 x CPU Fan Connector (4-pin)**; 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); 1 x Front Panel Audio Connector (15? Gold Audio Connector); 1 x Thunderbolt™ AIC Connector (5-pin); 1 x Thunderbolt™ AIC Connector (10-pin)****; 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); Premium Blu-ray Audio support; Supports Surge Protection (ASRock Full Spike Protection); Nichicon Fine Gold Series Audio Caps; 120dB SNR DAC with Differential Amplifier; TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets); Pure Power-In; Direct Drive Technology; PCB Isolate Shielding; Impedance Sensing on Front Out port; Individual PCB Layers for R/L Audio Channel; AURA RGB LED; Gold Audio Jacks; 15? Gold Audio Connector; Supports Creative Sound Blaster™ Cinema 3

• LAN: Gigabit LAN 10/100/1000 Mb/s; Giga PHY Intel® I219V; Supports Wake-On-LAN; Supports Lightning/ESD Protection (ASRock Full Spike Protection); Supports Energy Efficient Ethernet 802.3az; Supports PXE

• BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL Voltage Multi-adjustment

• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

• OS: Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU); Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)*

• Other: -

• Warranty: 36 Months
