Дънна платка msi s1151 b250 gaming m3 intel b250, atx

Дънна платка MSI S1151 B250 GAMING M3 Intel B250, ATX

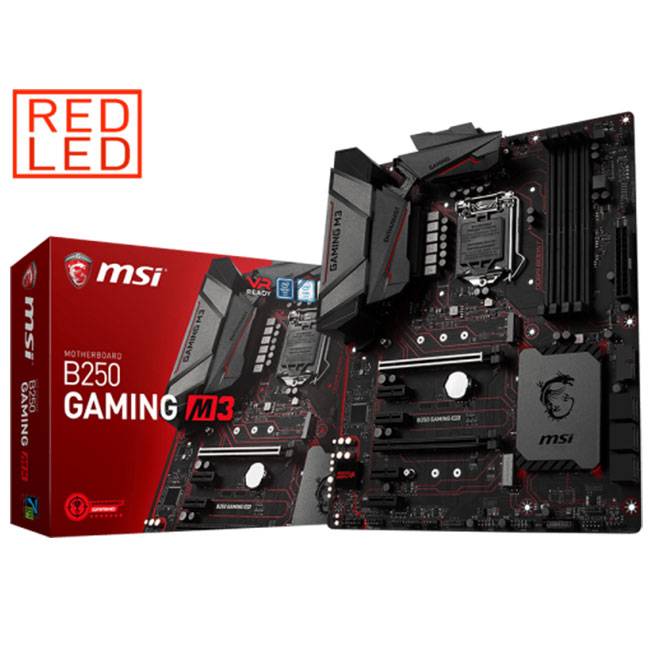

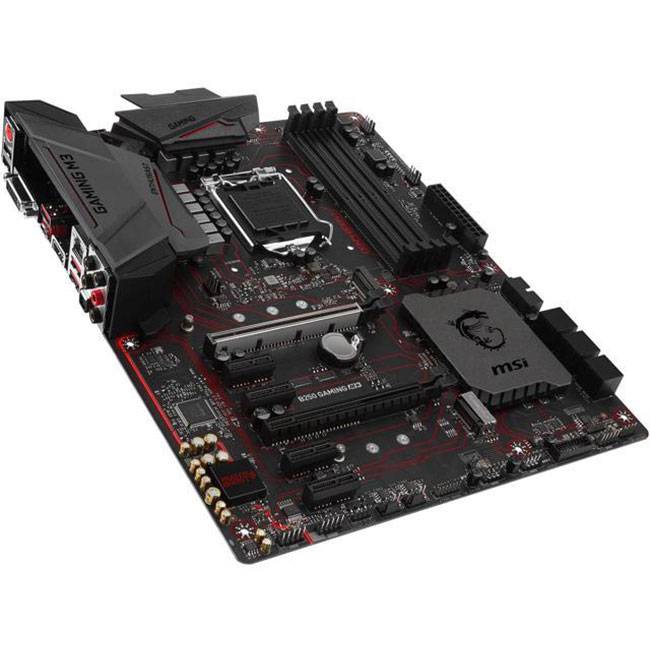

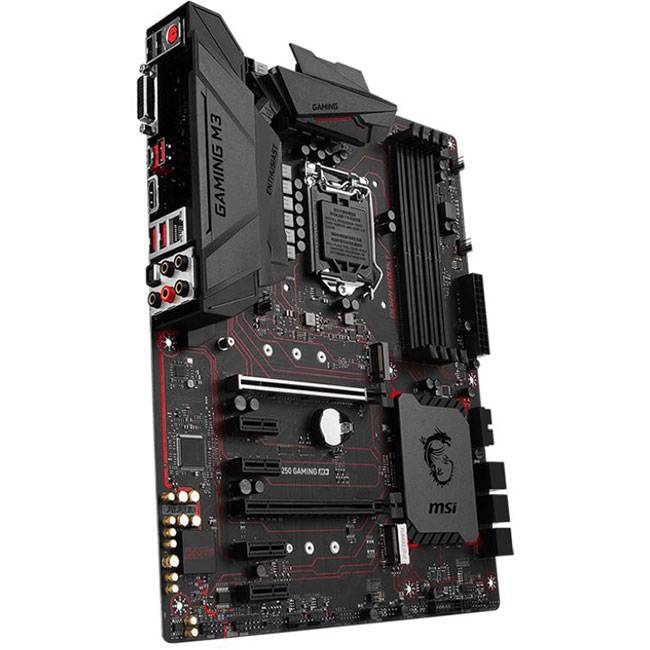

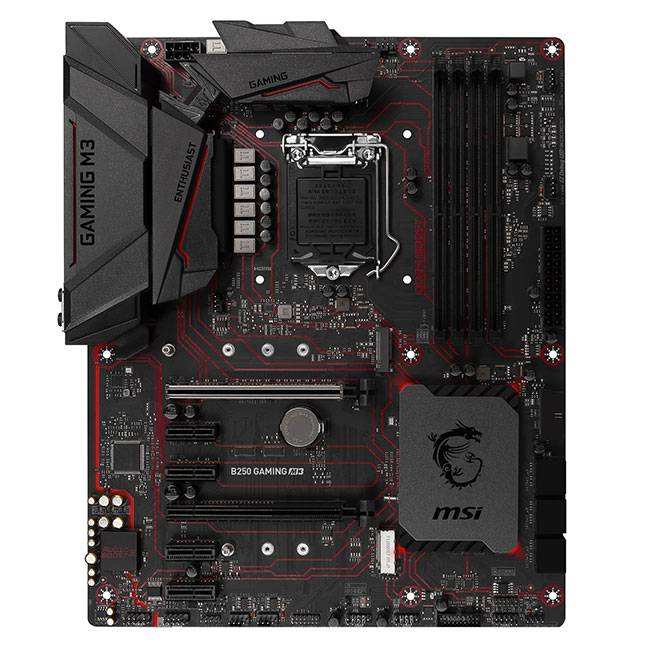

MSI B250 GAMING M3
Product ID: 58833
Mnfr. Part#: B250 GAMING M3

• Socket: LGA1151

• Graphics: • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz; • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

• CPU`s supported: • Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

• Chipset: • Intel® B250 Chipset

• Expansion Slots: • 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)*; • 4 x PCIe 3.0 x1 slots; * The PCI_E4 slot will be unavailable when an M.2 SSD module has been installed in the M.2_2 slot.; ** The PCI_E2 slot will be unavailable when an expansion card has been installed in the PCI_E5 slot.; ** The PCI_E3 slot will be unavailable when an expansion card has been installed in the PCI_E6 slot.

• Storage: • Intel® B250 Chipset; • 6 x SATA 6Gb/s ports*; • 2x M.2 slots (Key M); - Support up to PCIe 3.0 x4 and SATA 6Gb/s; - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**; - M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices; - M2_2 slot supports 2242/ 2260 /2280 storage devices; - Intel® Optane™ Memory Ready for M2_2 slot***; • Supports Intel® Smart Response Technology for Intel Core™ processors (optional)

• Memory type: • 4 x DDR4 memory slots, support up to 64GB; - 7th Gen processors support DDR4 2400/ 2133 MHz*; - 6th Gen processors support DDR4 2133 MHz*; • Dual channel memory architecture; • Supports Intel® Extreme Memory Profile (XMP)

• I/O: - 1 x PS/2 keyboard/ mouse combo port; - 2 x USB 2.0 Type-A ports; - 1 x DVI-D port; - 1 x USB 3.1 Gen2 Type-A port; - 1 x USB 3.1 Gen2 Type-C port; - 2x USB 3.1 Gen1 Type-A ports; - 1 x HDMI™ port; - 1 x LAN (RJ45) port; - 5 x OFC audio jacks; - 1 x Optical S/PDIF OUT connector

• Connectors: - 1 x 24-pin ATX main power connector; - 1 x 8-pin ATX 12V power connector; - 6 x SATA 6Gb/s connectors; - 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports); - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports); - 1 x 4-pin CPU fan connector; - 1 x 4-pin water pump fan connector; - 4 x 4-pin system fan connectors; - 1 x Front panel audio connector; - 2 x Front panel connectors; - 1 x LED connector; - 1 x TPM module connector; - 1 x Chassis Intrusion connector; - 1 x Serial connector; - 1 x Clear CMOS jumper

• Audio: • Realtek® ALC1220 Codec; - 7.1-Channel High Definition Audio; - Supports S/PDIF output

• LAN: • 1 x Killer™ E2500 Gigabit LAN controller

• BIOS: Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

• Form Factor: • 12 in. x 9.6 in. (30.4 cm x 24.3 cm); • ATX Form Factor

• Гаранция: 36 Месеца

https://www.msi.com/Motherboard/B250-GAMING-M3/Specification
