Захранване evga supernova 1000 g2 80 plus platinium 220-p2-1000-xr - evga-ps-1000w-plat

Захраване EVGA SuperNOVA 1000 G2 80 PLUS PLATINIUM 220-P2-1000-XR

Спецификация

Model
220-P2-1000-XR

Series
SuperNOVA 1000G2

Maximum Power
1000W

Fans
1

Main Connector
24Pin

+12V Rails
Single

SLI
SLI Ready

Haswell Support
Certified

Modular
Full Modular

Efficiency
92%

Energy-Efficient
80 PLUS PLATINUM Certified

Input Voltage
100 - 240 V

Input Frequency Range
50/60 Hz

Input Current
15A

Output
+5V@20A, +3.3V@20A, +12V@83.3A, -12V@0.5A, +5Vsb@2.5A

Approvals
cTUVus/TUV/CB/CE/FCC/C-Tick/BSMI/RoHS/CCC

Dimensions
3.4"(H) x 5.9" (W) x 7.9" (L)

Weight
6.6 lbs.

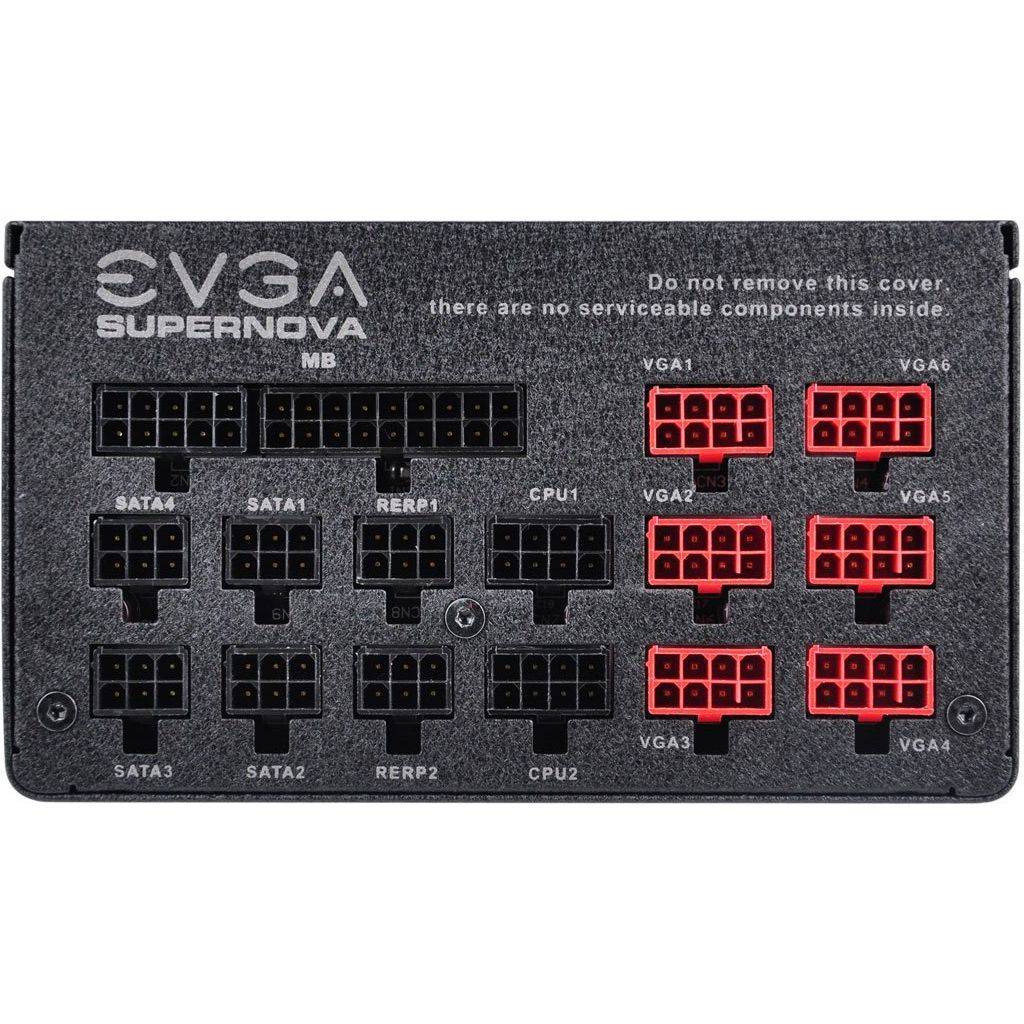

Конектори

1 x 24 Pin ATX
2x 4+4 Pin EPS12V
6x 6+2 Pin PCI-E
10 x SATA
5 x Molex
1 x Floppy

Възможности

80 PLUS Platinum High Efficiency Power Supply Certified-50% Load (92% Efficiency)
Superior Vertical Double Layer Main Transformer
Dual Thermal Control System provides custom Fan RPM modes
ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45 degree C)
Japanese Nippon Chemi-Con solid state capacitors improves long-term reliability
High Amperage Multi-Rail Design for maximum power and efficiency
Over Power/Under Power/Over Voltage/Short Circuit protections built in

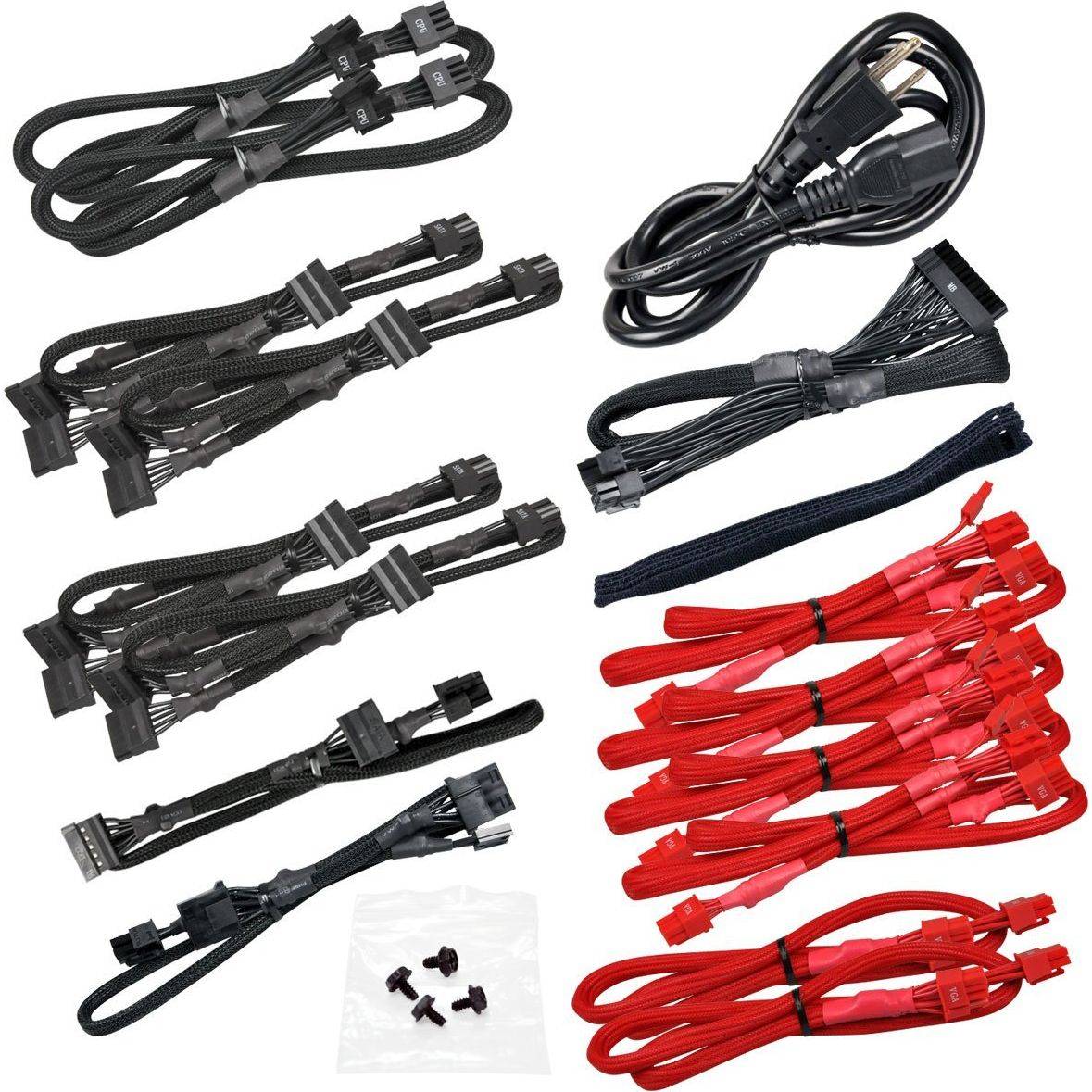

Fully modular cable design (Improve airflow/cable management).
