Захранване hiper hpu-4s350 , 350w, atx 2.01

Wattage Rated Wattage 350 Watts
Peak Load 425 Watts

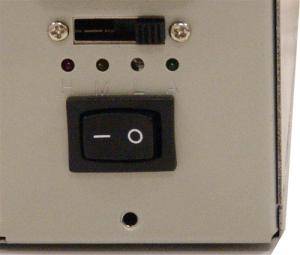

Switch Type Manual Rocker
Auto Standby ATX Logic
Fan 120 mm - R.P.M. 2000 R.P.M.
120 mm - Type Sleeve Bearing
Cable Length 410 mm
Thickness
18 guage
Connectors ATX Main Power -20/24pin 1

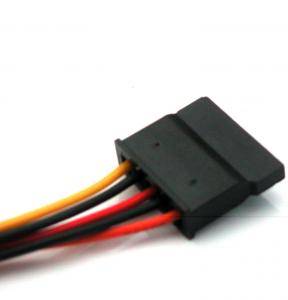

Serial ATA Power - 15 pin 2
Peripheral Power - 4 pin 6
+12V Power - 4 pin 1
Floppy Power - 4 pin 2
PCIe power - 6 pin 1
Input Parameter Voltage Range 200-240 V
Current 5A
Output Parameter +5V 2.0A - 25A
+12V 0.2A - 15A
-5V 0A - 0.5A
-12V 0A - 0.85A
+5V 0 - 2A
+3.3V 0.5 - 28A
Output Load Regulation +12V < 300 W
+3.3V & +5V < 150 W
+3.3V, +5V & +12V < 280 W
Power Good Signal Rise Time < 10 ms
Signal On 100 - 500 ms
Signal Off > 1 ms
PFC Power Factor Correction Passive
Chassis Thickness 0.8 mm
Unit Size Dimension 150 x 140 x 86 mm /5.9" x 5.5" x 3.45"
Weight Net Weight 2 Kg
