Звукова карта creative x-fi elite pro

Technical Specifications
- 24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate
- 24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog 7.1 speaker output
- 24-bit Digital-to-Analog conversion of stereo digital sources at 192kHz to stereo output
- 16-bit to 24-bit recording sampling rates: 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz
- ASIO 2.0 support with direct monitoring at 16 and 24-bit at sample rates of 44.1/48/88.2 and 96kHz
- Enhanced SoundFont support of up to 24-bit resolution
- 64MB of X-RAM

---

Audio Performance (Rated Output @ 2Vrms, Typical Value)
- Signal-to-Noise Ratio (20kHz Low-pass filter, A-Weighted)
*Stereo Output 116dB
*Front and Rear Channels 116dB
*Center, Subwoofer and Side Channels 116dB
- Total Harmonic Distortion + Noise at 1kHz (20kHz Low-pass filter) = 0.0008%
- Frequency Response (+/-3dB, 24-bit/96kHz input) = <10Hz to 46kHz
- Frequency Response (+/-3dB, 24-bit/192kHz input) = <10Hz to 88kHz (Stereo only)

---

Connectivity
- FlexiJack (3-in-1 function, Digital In / Line In / Microphone) via 3.50mm mini jack
- Line level out (Front / Side / Rear / Center / Subwoofer) via 3.50mm mini jacks
- AUX_IN line-level analog input via 4-pin Molex connector on card
- One AD_Link (26 pin) connector for linking to the X-Fi I/O Console

---

I/O Drive Connectivity
- Two RCA jacks for coaxial SPDIF input and output
- Shared Auxiliary input/Phono input via RCA stereo jacks
- Two optical connectors for optical SPDIF input and output
- Two standard MIDI female connectors for MIDI input and output
- Headphone output and volume control via 6.35 mm (1/4-inch) stereo jack
- Shared line-level analog Line/Microphone input via 6.35 mm (1/4-inch) stereo jack
- Shared line-level analog Line/Hi-Z input via 6.35 mm (1/4-inch) stereo jack
- DIN jack to connect Creative analog speaker systems with the wired remote control or Audio Control Pod that comes with the speakers
- One AD_LINK connector for linking to the audio card

---

Minimum System Requirements
- Genuine Intel® Pentium® III 1 GHz, AMD® 1 GHz processor or faster
- Intel, AMD or 100% compatible motherboard chipset
- Microsoft® Windows® XP Service Pack 2 (SP2)
- 512MB RAM
- 600MB of free hard disk space
- Available PCI 2.1 slot for the audio card
- CD/DVD drive required for software installation
- Graphics card with DirectX® 9 and OpenGL® compliant 3D graphics accelerator

---

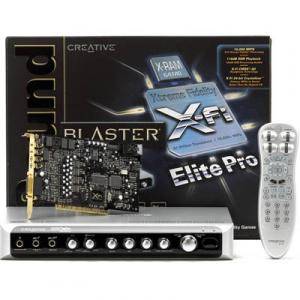

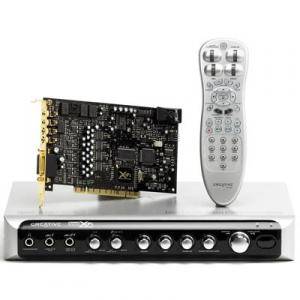

Package Contents
- Sound Blaster® X-Fi Elite PCI Card
- X-Fi I/O Console
- Remote Control
- 2x Batteries (AA)
- Rubber Feet (x4)
- Vertical Stand
- 6.35 mm (1/4-inch) to 3.50 mm (1/8-inch) plug adapter
- Power Splitter Cable
- Volume Control Cable (9-pin DIN)
- AD_Link Cable
- X-Fi Music Creation Software CD
o Steinberg-Cubase LE
o Steinberg-WaveLab Lite
o IK Multimedia-Amplitube LE
- Quick Start Leaflet
- Installation and Applications CD containing
o Drivers for Windows® XP
o Creative Software Suite
o Doom 3 Sound Blaster EAX patch
o User's Guide
o Music Creation Guide

X-FI ELITE PRO
Гаранция: 24 месеца
