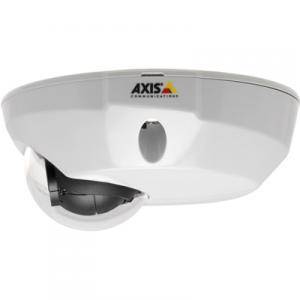

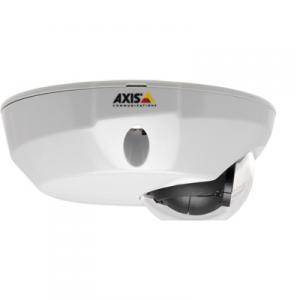

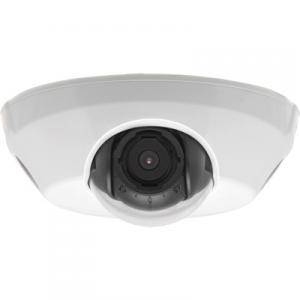

Камера за наблюдение axis m3114-r; fixed dome camera with rugged design, discreet and tamper-resistant casing - 0342-001

Фиксирана куполна камера с компактен дизайн предназначена за видеонаблюдение във влакове, автомобили и др. МПС.

---

Фиксиран обектив

---

Плосък дизайн с защита против демонтаж

---

H.264 и Motion JPEG

---

максимална резолюция HDTV 720p или 1 мегапиксел при 30 к/с

---

WDR

---

Детекция при движение и аларма против саботаж

---

Захранване по мрежа

---

Camera:
Models:
1 MP/HDTV 720p
- Rugged, female RJ-45 connector
- Rugged, female M12 connector
Image sensor:
1/4" progressive scan RGB CMOS
Lens:
2.9 mm: 80° view*, F2.0, M12 mount
Minimum illumination:
1 - 100000 lux, F2.0
Shutter time:
1/24 500 s to 1/6 s
Camera angle adjustment:
Pan ± 30°, tilt 0-90°, rotation ± 180°

---

Video:
Video compression:
H.264 (MPEG-4 Part 10/AVC) Motion JPEG
Resolutions:
1280x800 to 160x90
Frame rate:
30 fps in all resolutions
Video streaming:
Multiple, individually configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Pan/Tilt/Zoom:
Digital PTZ, preset positions, guard tour
Image settings:
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight
compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images
Rotation: 0°, 90°, 180°, 270°
Text and image overlay, privacy mask

---

Network:
Security:
Password protection, IP address filtering, HTTPS** encryption, digest authentication, user access log
Supported protocols:
IPv4/v6, HTTP, HTTPS**, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS

---

System integration:
Application Programming Interface:
Open API for software integration, including VAPIX® and AXIS Camera Application Platform from Axis Communications; specifications available at www.axis.com
Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection
Intelligent video:
Video motion detection, active tampering alarm Support for AXIS Camera Application Platform enabling installation of additional applications
Alarm triggers:
Intelligent video
Alarm events:
File upload via FTP, HTTP and email Notification via email, HTTP and TCP
Video buffer:
25 MB pre- and post-alarm
Installation aids in software:
Pixel counter

---

General:
Casing:
Rugged, IP66- and IP67-rated aluminum/plastic casing with integrated dehumidifying membrane and captive screws
Processors and memory:
ARTPEC-3, 128 MB RAM, 128 MB Flash
Power:
Power over Ethernet IEEE 802.3af Class 1, max. 3.2 W
Connectors:
RJ-45 variants: rugged, female RJ-45 10BASE-T/100BASE-TX
M12 variants: rugged, female, D-coded M12 connector with rotatable coupling nut
All connectors support Power over Ethernet
Operating conditions:
-20 °C to 50 °C (-4 °F to 122 °F)
Approvals:
EN 55022 Class B, EN 60950-22, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, ICES-003 Class B, FCC Part 15 Subpart B Class B, VCCI Class B, ECE R10 rev.03 C-tick AS/NZS CISPR 22, EN 60950-1, EN 50121, IEC 60721-3-4 Class 4K3 (temperature range -20°C to 50°C) EN 50155 Class T3 (vibration, shock, bump, temperature) ISO 16750-3 (vibration), IEC 62262 Class IK08 IP66, IP67, NEMA 250 Type 4X
Included accessories:
Lens tool, drill hole template, mounting adapters, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license
Weight: 250 g (0.55 lb.)


Гаранция: 12 месеца
