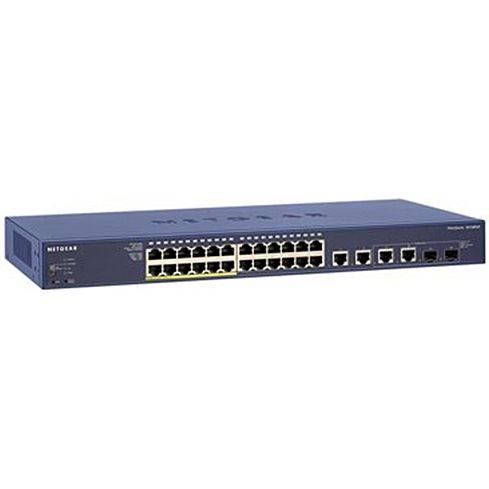

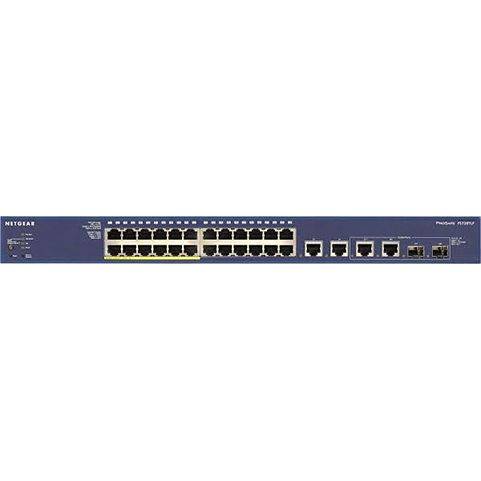

Комутатор netgear 24 x 10/100 prosafe smart switch with 4 x gigabit ports (2 copper and 2 sfp) and 12 x poe (up to 100w)- fs728tlp-100eus

Комутатор Netgear 24 x 10/100 Prosafe Smart switch with 4 x Gigabit ports (2 copper and 2 SFP) and 12 x PoE (Up to 100W)

Възможности
•24 (twenty-four) x RJ-45 10/100 Fast Ethernet switch ports
•4 (four) RJ-45 10/100/1000 Gigabit Ethernet switch ports
•Autosensing and auto negotiating capabilities for all ports
•Auto MDI/MIDX technology is supported on all ports
•Full- and half-duplex functions for all 10/100/1000 Mbps ports
•Store-and-forward transmission to remove corrupt packets from the network
•Automatic address-learning function to build the packet-forwarding information table
•Full-duplex IEEE 802.3x pause frame flow control
•Standard 1U high, rack-mountable 19-inch chassis
•Half-duplex back-pressure control
•Per-port LEDs and system LEDs

Спецификация

Network protocols and supported standards
•IEEE 802.3i (10BASE-T)
•IEEE 802.3u (100BASE-TX, 100BASE-FX)
•IEEE 802.3x (full duplex-flow control)
•IEEE 802.3z (1000BASE-X)
•IEEE 802.3ab (1000BASE-T)
•IEEE 802.3af (Power over Ethernet)
•IEEE 802.3az (EEE)
•IEEE 802.1x
•IEEE 802.1D

Management
•IEEE 802.1Q static VLAN (up to 128 VLANs, ranging from 1 to 4093)
•IEEE 802.1p Class of Service (CoS)
•Port trunking with support for LACP

Interfaces
•Twenty-four RJ-45 connectors for 10BASE-T and 100BASE-TX (AutoMDI/MIDX on all ports)
•Four RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (AutoMDI/MIDX on all ports)
•Two small form-factor pluggable (SFP) GBIC slots

LEDs
•PoE Max LED for the switch
•LED Mode LED for the switch
•Fan LED for the switch
•Power LED for the switch
•Link/ACT (activity) LED for each port
•PoE LED for port 1 through 12

Performance
•Forwarding mode. Store-and-forward
•Bandwidth. 12.8 Gbps
•Address database size. 8 k Media Access Control (MAC) addresses
•The switch can provide a total of 100W for PoE

Power supply
•Power consumption. 124W maximum
•Universal power input. 100 - 240 VAC/50 - 60 Hz

Dimensions (H x W x D)
•1.7 x 17.3 x 8.03 in.
•43 x 440 x 204 mm

Weight
•6.44 lb
•2.92 kg

Environment
•Operating temperature. 0 to 50°C (32 to 122°F)
•Storage temperature. -20 to 70°C (28 to 158°F)
•Operating humidity. 10 - 90% maximum relative humidity, noncondensing
•Storage humidity. 5 - 95% maximum relative humidity, noncondensing
•Operating altitude. 3,000 m (10,000 ft) maximum
•Storage altitude. 3,000 m (10,000 ft) maximum

Electromagnetic emissions / CE mark, commercial
•FCC Part 15 Class A
•VCCI Class A
•C-Tick
•CCC
•KCC
•CAN ICES-3(A)/NMB-3(A)

Electromagnetic immunity
•EN 55022 (CISPR 22), Class A

Safety
•CE mark, commercial
•UL / cUL / CE EN 60950-1
•CB
•CCC

Supported GBICs
•AGM731F
•AGM732F
