Кутия fractal design core 1300

Кутия Fractal Design Core 1300

• Key features
An extremely compact micro ATX case with bottom-mounted PSU, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
Superior water cooling support for its size, supporting up to two 240mm radiators
Featuring a 120mm rear exhaust fan for exceptional cooling
Supports tall CPU cooler towers, up to about 162mm in height
Total 7 fan slots with two 120mm fans included

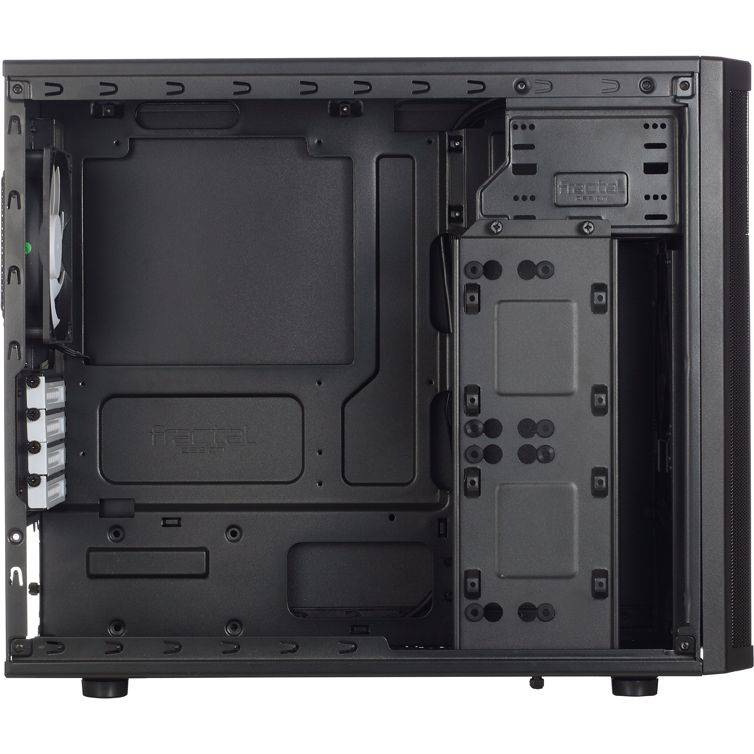

Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
Four vibration dampening hard drive trays for up to four 3.5" HDDs, all compatible with 2.5" drives
HDD trays split into two cages and strategically positioned with a large space in between to support all long graphics cards up to a maximum length of 380mm, with all hard drive trays in place
One additional SSD position behind the PSU area with easy installation and access

• Specifications
Mini ITX, Micro ATX motherboard compatibility
2 drive bays of 5,25" - 2 bays 3.5"
3 -2.5" dedicated SSD unit position
4 expansion slots
Graphics cards up to 380mm in length may be installed. One or more 3.5" hard drives may interfere with side-mounted power connectors on graphics cards longer than 200 mm
Support cooling system: 7 Fan positions (2 fans included)
Filtered fan slots in front and bottom
CPU coolers up to 162 mm in height
Supports ATX PSUs up to 205/185 mm with a bottom 120/140mm fan; When not using any bottom fan location longer PSUs can be used
13.5-18.5 mm of space for cable routing behind the motherboard plate
Available in Black
Case dimensions (WxHxD): 195 x 370 x 450mm
Case dimensions with feet/protrusions/screws: 195 x 384 x 460mm
Net weight: 4.6 kg
Package dimensions (WxHxD): 270 x 547 x 432mm
Package weight: 5.7 kg

• Cooling system
Front: 2 - 120mm fans (included is 1 Fractal Design Silent Series LT 120mm 1200 RPM speed) or 1 - 140mm fan (not included, two positions available)

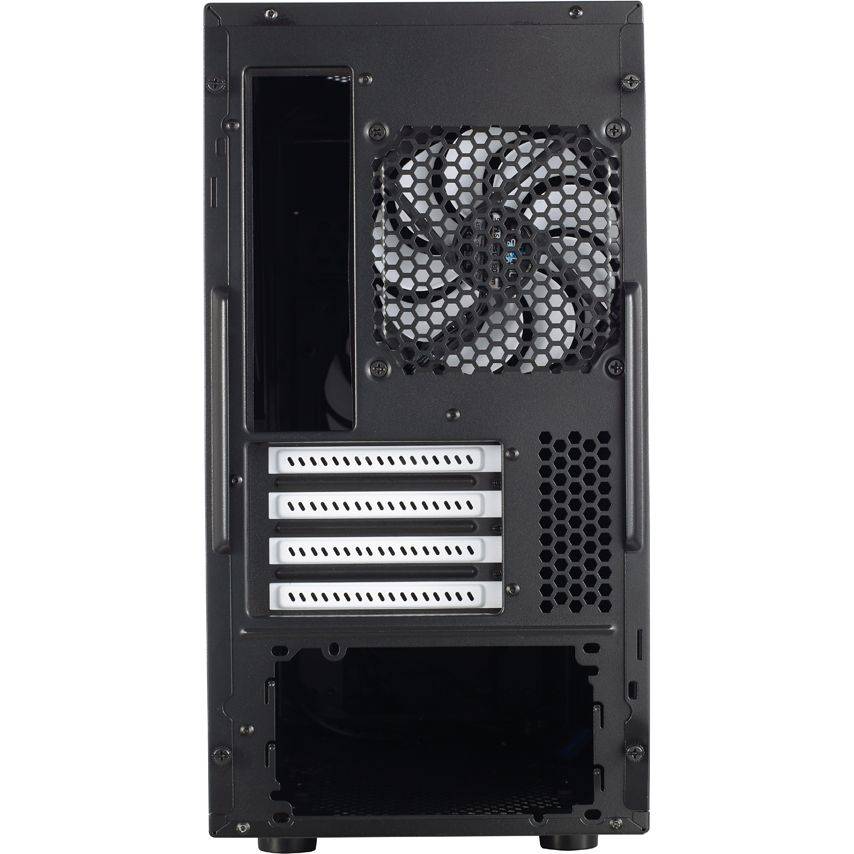

Rear: 1 - 120mm fan (included is 1 Fractal Design silent 120mm fan, 1200 RPM speed)
Top: 2 - 120/140mm fan (not included)
Bottom: 1 - 120mm fan (not included, two positions available) or 1 - 140mm fan (not included)
Side: 1 -140mm fan (not included)

• Water Cooling compatibility
Front : Slim 240mm radiator (with lower ODD slot unused)
Top : Slim 240mm radiator (with upper ODD slot occupied by a device no longer than 150mm and with no components on the upper 23 mm on the motherboard that are taller than 34mm)
Rear : 120 mm radiator

• Front interface
1 USB 3.0 + 1 USB 2.0
Audio in/out
Power button with LED (white)
HDD activity LED (white)
Reset button
