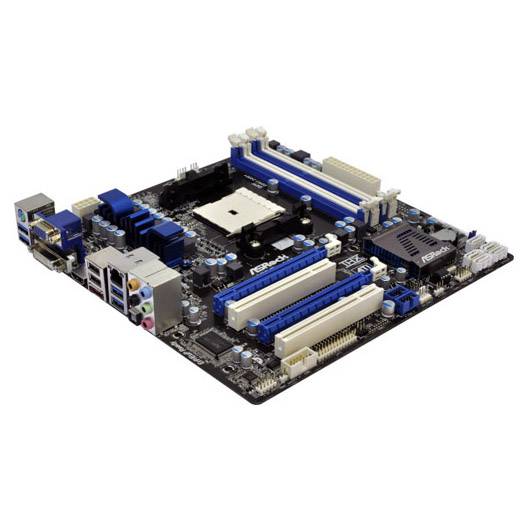

Asrock a75 pro4-m /a75/fm1

• CPU
Support for Socket FM1 100W processors
V4 + 1 Power Phase Design
Supports AMD's Cool 'n' Quiet Technology
UMI-Link GEN2

• Chipset
AMD A75 FCH (Hudson-D3)

• Memory
Dual Channel DDR3 memory technology
4 x DDR3 DIMM slots
Supports DDR3 2400+(OC)/1866(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB

• VGA
AMD Radeon HD 65XX/64XX graphics
DirectX 11, Pixel Shader 5.0
Max. shared memory 512MB
Multi VGA Output options: D-Sub, DVI-D and HDMI
Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
Supports AMD Steady Video™: New video post processing capability for automatic jutter reduction on home/online video
Supports HDCP function with DVI and HDMI ports
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

• Expansion Slots
2 x PCI Express 2.0 x16 slots (PCIE1 @ x16 mode; PCIE2 @ x4 mode)
2 x PCI slots
Supports AMD Quad CrossFireX™ , CrossFireX™ and Dual Graphics

• Connectors
5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
1 x IR header
1 x CIR header
1 x Print port header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
3 x USB 2.0 headers (support 6 USB 2.0 ports)

• Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Premium Blu-ray audio support
Supports THX TruStudio™

• LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E
Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

• Rear Panel I/O Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Ready-to-Use USB 2.0 Ports
1 x eSATA3 Connector
4 x Ready-to-Use USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

• BIOS
32Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

• Form Factor
Micro ATX

• Dimensions
24.4 cm x 24.4 cm

• Package
Box
