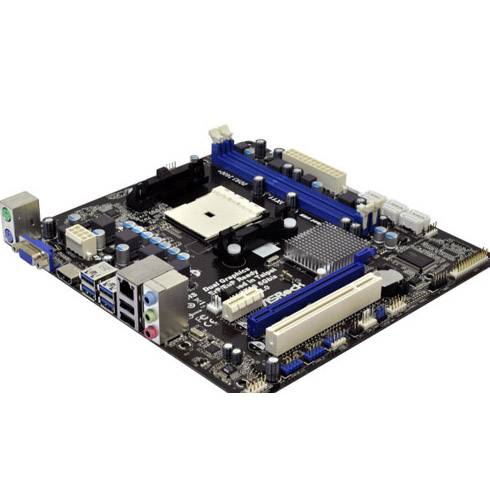

Asrock a75m-hvs /a75/fm1

• CPU
Support for Socket FM1 100W processors
Supports AMD's Cool 'n' Quiet Technology
UMI-Link GEN2

• Chipset
AMD A75 FCH (Hudson-D3)

• Memory
Dual Channel DDR3 memory technology
2 x DDR3 DIMM slots
Supports DDR3 2400+(OC)/1866(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB

• VGA
AMD Radeon HD 65XX/64XX graphics
DirectX 11, Pixel Shader 5.0
Max. shared memory 512MB
Dual VGA Output: support HDMI and D-Sub ports by independent display controllers
Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
Supports AMD Steady Video™: New video post processing capability for automatic jutter reduction on home/online video
Supports HDCP function with HDMI port
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

• Expansion Slots
1 x PCI Express 2.0 x16 slot
1 x PCI Express 2.0 x1 slot
1 x PCI slot
Supports AMD Dual Graphics

• Connectors
6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
1 x IR header
1 x CIR header
1 x Print port header
1 x COM port header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
3 x USB 2.0 headers (support 6 USB 2.0 ports)

• Audio
5.1 CH HD Audio (VIA ® VT1705 Audio Codec)
Supports THX TruStudio™

• LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E
Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x HDMI Port
2 x Ready-to-Use USB 2.0 Ports
4 x Ready-to-Use USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone

• BIOS
32Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
DRAM, VDDP, SB Voltage Multi-adjustment

• Form Factor
Micro ATX

• Dimensions
22.6 cm x 21.6 cm

• Package
Box

 Гаранция: 24 Месеца
