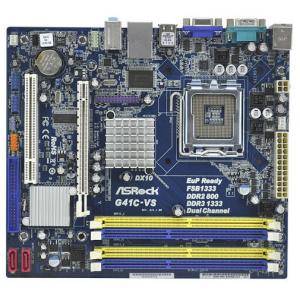

Asrock g41c-vs/g41/lga775

• CPU
LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
Supports Hyper-Threading Technology
Supports Untied Overclocking Technology
Supports EM64T CPU

• Front Side Bus (FSB)
1333/1066/800/533 MHz

• Chipset
Northbridge: Intel® G41
Southbridge: Intel® ICH7

• Memory
Dual Channel DDR3/DDR2 memory technology*
2 x DDR3 DIMM slots
Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 8GB

2 x DDR2 DIMM slots
Supports DDR2 800/667/533 non-ECC, un-buffered memory
Max. capacity of system memory: 8GB
* DDR3 and DDR2 are supported separately.

• VGA
Intel® Graphics Media Accelerator X4500
Pixel Shader 4.0, DirectX 10
Max. shared memory 1759MB
Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

• Expansion Slots
1 x PCI Express x16 slot
1 x PCI slot

• Connectors
2 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
1 x ATA100 IDE connector (supports 2 x IDE devices)
1 x Print port header
CPU/Chassis FAN connector
24 pin ATX power connector
4 pin 12V power connector
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports)

• Audio
5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• LAN
Atheros ® PCIEx1 LAN AR8132L
Speed: 10/100 Ethernet
Supports Wake-On-LAN

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port: COM1
1 x VGA Port
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone

• BIOS
8Mb AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
VCCM, NB, VTT, GTLRef Voltage Multi-adjustment
Supports Smart BIOS

• Form Factor
Micro ATX

• Dimensions
22.4 cm x 19.8 cm

• Package
Box
