Asrock k10n78m pro /am2+

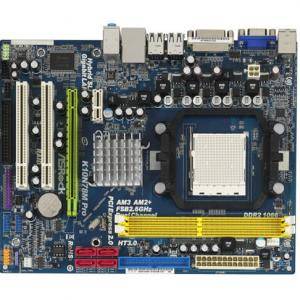

ASROCK K10N78M Pro

• CPU
Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
Support for AM3 processors: AMD Phenom™ II X6 / X4 / X3 and Athlon II X4 / X3 / X2 processors
AMD LIVE!™ Ready
Supports AMD's Cool 'n' Quiet Technology
Supports Untied Overclocking Technology
Supports Hyper-Transport 3.0 (HT 3.0) Technology

• Front Side Bus (FSB)
2600 MHz (5.2 GT/s)

• Chipset
NVIDIA ® GeForce 8200

• Memory
Dual Channel DDR2 memory technology
2 x DDR2 DIMM slots
Supports DDR2 1066 * /800/667/533 non-ECC, un-buffered memory
Max. capacity of system memory: 8GB * *
*Support with AM3 / AM2+ CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

• VGA
Integrated NVIDIA® GeForce 8200 graphics
DX10 VGA, Pixel Shader 4.0
Max. shared memory 512MB
Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers
Supports DVI with max. resolution up to 1920x1200 @ 75Hz
Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
Supports HDCP function with DVI-D port
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port
NVIDIA® PureVideo™ HD Ready

• Expansion Slots
1 x PCI Express 2.0 x16 slot (green @ x16 mode)
1 x PCI Express x1 slot
2 x PCI slots

Supports NVIDIA ® Hybrid SLI™

• Connectors
4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and Hot Plug functions
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x IR header
1 x Print port header
1 x COM port header
CPU/Chassis FAN connector
24 pin ATX power connector
4 pin 12V power connector
CD in header
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports)

• Audio
5.1 CH HD Audio (ALC662 Audio Codec)
Chipset embedded HDMI Audio

• LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Realtek RTL8211CL
Supports Wake-On-LAN

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA/D-Sub Port
1 x VGA/DVI-D Port
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone

• BIOS
8Mb AMI BIOS
AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
Supports Smart BIOS

• Form Factor
Micro ATX

• Dimensions
24.4 cm x 19.1 cm

• Package
Box
