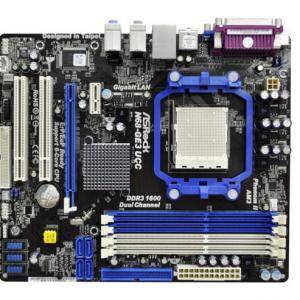

Asrock n68-ge3 ucc

• CPU
Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
Six-Core CPU Ready
Supports UCC feature (Unlock CPU Core)
Supports AMD's Cool 'n' Quiet Technology
Supports Untied Overclocking Technology
Supports Hyper-Transport Technology

• Front Side Bus (FSB)
FSB 1000 MHz (2.0 GT/s)

• Chipset
NVIDIA ® GeForce 7025 / nForce 630a

• Memory
Dual Channel DDR3 memory technology
4 x DDR3 DIMM slots
Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB

• VGA
Integrated NVIDIA ® GeForce 7025 graphics
DX9.0 VGA, Pixel Shader 3.0
Max. shared memory 256MB
Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz

• Expansion Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

• Connectors
4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x COM port header
CPU/Chassis/Power FAN connector
24 pin ATX power connector
4 pin 12V power connector
CD in header
Front panel audio connector
3 x USB 2.0 headers (support 6 USB 2.0 ports)

• Audio
7.1 CH HD Audio (VIA ® VT1718S Audio Codec)

• LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY RTL8211CL
Supports Wake-On-LAN

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Parallel Port (ECP/EPP Support)
1 x VGA Port
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

• BIOS
4Mb AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU, VCCM Voltage Multi-adjustment

• Form Factor
micro ATX

• Dimensions
24.4 cm x 20.8 cm

• Package
Box
