Asrock p45de /p45/lga775

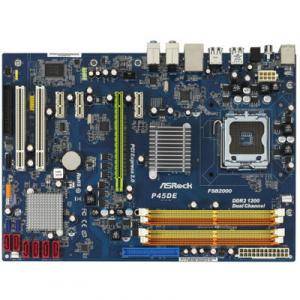

ASROCK P45DE

• CPU
LGA 775 for Intel ® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium ® Dual Core / Celeron ® Dual Core / Celeron ® , supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
Supports Hyper-Threading Technology
Supports Untied Overclocking Technology
Supports EM64T CPU

• Front Side Bus (FSB)
2000/1600/1333/1066/800 MHz

• Chipset
Northbridge: Intel ® P45
Southbridge: Intel ® ICH10

• Memory
Dual Channel DDR2 memory technology
4 x DDR2 DIMM slots
Supports DDR2 1200/1066/800/667 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB *

• VGA
-

• Expansion Slots
1 x PCI Express 2.0 x16 slot (green @ x16 mode)
3 x PCI Express x1 slots
2 x PCI slots

• Connectors
6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x IR header
1 x COM port header
1 x HDMI_SPDIF header
CPU/Chassis FAN connector
24 pin ATX power connector
8 pin 12V power connector
CD in header
Front panel audio connector
3 x USB 2.0 headers (support 6 USB 2.0 ports)

• Audio
7.1 CH Windows ® Vista™ Premium Level HD Audio (VIA ® VT1708S Audio Codec)

• LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111DL
Supports Wake-On-LAN

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Coaxial SPDIF Out Port
1 x Optical SPDIF Out Port
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

• BIOS
8Mb AMI BIOS
AMI Legal BIOS
Supports "Plug and Play"
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
CPU, DRAM, NB, SB,VTT Voltage Multi-adjustment
Supports I. O. T. (Intelligent Overclocking Technology)
Supports Smart BIOS

• Form Factor
ATX

• Dimensions
30.5 cm x 21.6 cm

• Package
Box
