Дънна платка ASROCK Z77 OC FORMULA

---

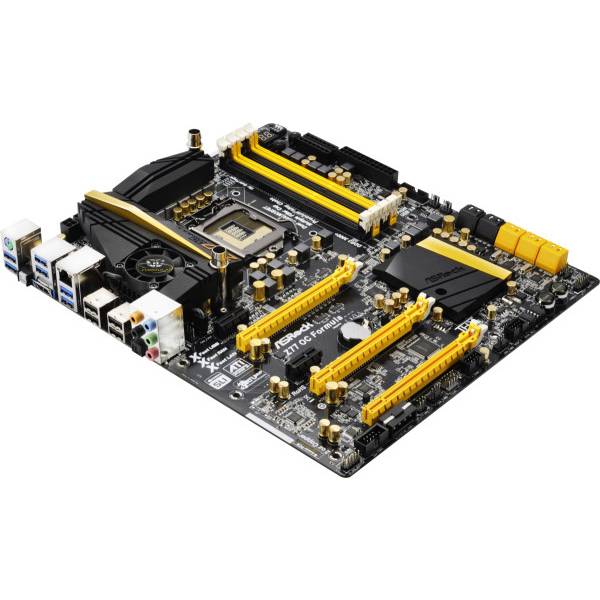

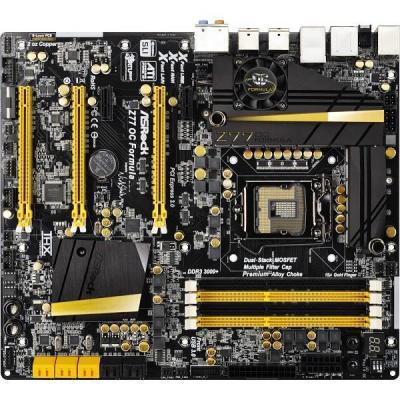

Огромният охладител на процесорното захранване прави много сериозно впечатление не толкова с малкия си вентилатор, колкото с размерите си и двата щуцера за свързване на воден кръг. Процесорът може да разчита на “12+4-фазно силово подсигуряване с цифрово управление, както и на позлатени плътни кондензатори. Освен това налице е и P80P диагностика, MOLEX конектор за допълнително захранване на слотовете PCIe x16 (два броя PCIe x16 3.0 и един PCIe x16 2.0), контактни точки за замерване на основните напрежения, както и допълнителни бутони за овърклокинг, PowerON и Reset. Налице са дори 2oz мед, “инвестирани” в изграждането на всяка една платка.

---

OC Formula Power Kit

- Digi Power

- Dual-Stack MOSFET (DSM)

- Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC)

- Premium Alloy Choke (Reduce 70% core loss compare to iron powder choke)

- 12 + 4 Power Phase Design

OC Formula Connector Kit

- Hi-Density Power Connector

- 15μGold Finger (CPU and memory sockets)

OC Formula Cooling Kit

- Twin-Power Cooling (Combine active air cooling and water cooling)

- 8 Layer PCB, 4 x 2oz copper

- GELID Solutions GC-Extreme Thermal Compound

Supports NickShih's OC Profile, Formula Drive, FAN-Tastic Tuning, Multi Thermal Sensor

Supports Fine-Tuning V-Controller, Interactive UEFI, Timing Configurator

Supports Rapid OC, PCIe ON/OFF, V-Probe

Supports ASRock XFast 555, Lucid MVP, Dehumidifier, OMG

Free Bundle : 1 x Front USB 3.0 Panel, 10 x OC Stands

---

Спецификации

 Общи

Процесор - Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package

- 12 + 4 Power Phase Design

- Supports Intel® Turbo Boost 2.0 Technology

- Supports Intel® K-Series unlocked CPU

- Supports Hyper-Threading Technology

Чипсет - Intel® Z77

- Supports Intel® Rapid Start Technology and Smart Connect Technology

*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Памет - Dual Channel DDR3 memory technology

- 4 x DDR3 DIMM slots

- Supports DDR3 3000+(OC)/2800(OC)/2666(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB*

- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS - 2 x 64Mb AMI UEFI Legal BIOS with GUI support (1 x Main BIOS and 1 x Recovery Backup BIOS)

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- SMBIOS 2.3.1 Support

- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

 Аудио, Видео и Мрежа

Графика - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU

- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU

- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU

- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

- Supports HDCP function with HDMI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

*Intel® HD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.

Аудио - 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudio™

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Broadcom BCM57781

- Supports Wake-On-LAN

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

 Разширение / Свързване

Слотове - 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4) or dual at x8/x8 mode)

- 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode)

- 2 x PCI Express 2.0 x1 slots

- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

- Supports NVIDIA® Quad SLI™ and SLI™

*PCIe Gen3 се поддържа от 3-тото поколение Intel® Core™ i5 и Core™ i7 процесорите.

SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and "Hot Plug" functions

- 4 x SATA3 6.0 Gb/s connectors by Marvell SE9172, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions

USB 3.0 - 2 x Rear USB 3.0 ports by Intel® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s

- 4 x Rear USB 3.0 ports by Etron EJ188H, support USB 1.0/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.0 header by Intel® Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s

Конектор - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions

- 6 x SATA3 6.0 Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- V-Probe™: 2 x 7-set of onboard voltage measurement points laid

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 4 x Chassis Fan connectors (1 x 4-pin, 3 x 3-pin)

- 1 x Power Fan connector (3-pin)

- 1 x MOS Fan connector (3-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- 4 pin 12V power connector

- SLI/XFire power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

- 1 x Dr. Debug with LED

- 1 x Power Switch with LED

- 1 x Reset Switch with LED

- 1 x Clear CMOS Switch with LED

- Rapid OC Button: +/- buttons to adjust OC frequency

- 1 x PCIe ON/OFF Switch

- 1 x Post Status Checker (PSC)

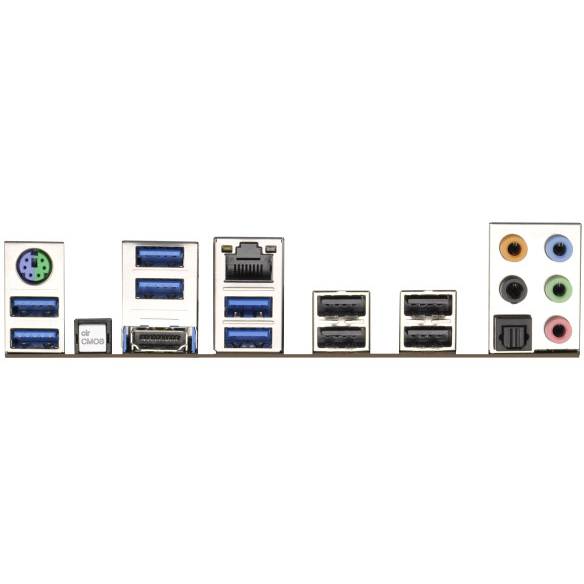

Заден панел с входове и изходи I/O Panel

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 6 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

 Други функции / Разни

OC Formula Kit OC Formula Power Kit

- Digi Power

- Dual-Stack MOSFET (DSM)

- Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC)

- Premium Alloy Choke (Reduce 70% core loss compare to iron powder choke)

OC Formula Connector Kit

- Hi-Density Power Connector

- 15μGold Finger (CPU and memory sockets)　

OC Formula Cooling Kit

- Twin-Power Cooling (Combine active air cooling and water cooling)

- 8 Layer PCB, 4 x 2oz copper

- GELID Solutions GC-Extreme Thermal Compound

Уникални функции - Formula Drive

- ASRock Instant Boot

- ASRock Instant Flash

- ASRock APP Charger

- ASRock XFast USB

- ASRock XFast LAN

- ASRock XFast RAM

- ASRock Crashless BIOS

- ASRock OMG (Online Management Guard)

- ASRock Internet Flash

- ASRock UEFI System Browser

- ASRock Dehumidifier Function

- ASRock Interactive UEFI

- NickShih's OC Profile

- Fine-Tuning V-Controller

- Timing Configurator

- Lucid Virtu Universal MVP

- Hybrid Booster:

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.)

- Good Night LED

*Lucid Virtu Universal MVP може да се поддържа само с процесори, които имат интегриран GPU.

**LucidLogix Virtu MVP only supports Windows® 7 OS or later versions.

CD с поддръжка - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM

Аксесоари - 1 x ASRock SLI_Bridge_2S Card

- Quick Installation Guide, Support CD, I/O Shield

- 6 x SATA Data Cables

- 2 x SATA 1 to 1 Power Cables

- 1 x Front USB 3.0 Panel

- 4 x HDD Screws

- 6 x Chassis Screws

- 1 x Rear USB 3.0 Bracket

- 10 x OC Stands

- GELID GC-Extreme Thermal Compound

Хардуерен монитор - CPU/Chassis/Power/MOS Temperature Sensing

- CPU/Chassis/Power/MOS Fan Tachometer

- CPU/Chassis/MOS Quiet Fan (Allows Chassis Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Chassis/MOS Fan Multi-Speed Control

- Multi Thermal Sensor

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Форм фактор - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm

- Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

OC - Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Сертификати - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)
