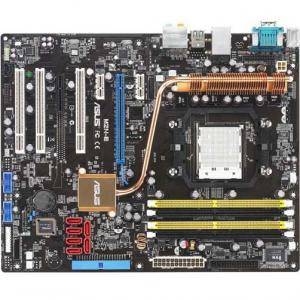

Asus m2n-e /nf500/1394/am2

• CPU
Socket AM2, supporting AMD Athlon 64FX / Athlon 64 X2 / Athlon 64 / Sempron processors, simultaneous 32- & 64-bit

• Front Side Bus (FSB)
2000/1600 MT/s

• Chipset
NVIDIA nForce 570 Ultra MCP, support Cool'n'Qiuet Technology, AMD Live!

• Memory
4 DDR DIMM slots, supports Dual-channel DDR2 800/667/533 ECC, Max. 8GB

• VGA
-

• Expansion Slots
1 x PCI-E x16
2 x PCI-E x1
1 x PCI-E x4
3 x PCI

• Connectors
6 x SerialATA II (3.0Gb/s), supports RAID 0,1,0+1,5,JBOD
1 x ATA 133/Ultra DMA Mode 6
1 x floppy connector, up to 2 FDD
3 x USB 2.0 headers
1 x ADH connector
1 x S/PDIF connector
1 x Parallel connector

• Audio
ADI 1988 8-channel High Definition Audio CODEC, Audio Sensing and Enumeration Technology, Coaxial S/PDIF

• LAN
NVIDIA nForce 570 Ultra MCP built-in Gigabit MAC with external Marvell PHY

• Rear Panel I/O Ports
1 x Keyboard PS2
1 x Mouse PS2
4 x USB 2.0
1 x Serial
1 x RJ45
1 x S/PDIF out coaxial
1 x Audio 8ch

• BIOS
4Mb AWARD BIOS, PnP, DMI, WfM2.0, SM BIOS 2.3

• Form Factor
ATX

• Dimensions
30.5x24.5 cm

• Package
Box

Гаранция: 36 месеца
