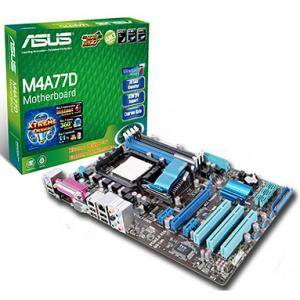

Asus m4a77d /amd770/am2+

ASUS M4A77D

• CPU
AMD AM3/AM2+/AM2 ;Phenom™II /Athlon™II /Phenom™ / Athlon™ /Sempron™ Processors
AMD 140W CPU Support
AMD Cool'n'Quiet™ Technology

• System bus
Up to 5200 MT/s ; HyperTransport™ 3.0 interface for AM2+(Up to AM3) CPU

• Chipset
AMD 770/SB710

• Memory
4 x DIMM, Max. 16 GB, DDR2 1200(O.C.)/1066/800/667/533 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ /AM3 CPU for one DIMM per channel only.

• VGA
-

• Expansion Slots
1 x PCIe x16
2 x PCIe x1
3 x PCI

• Connectors
3 x USB connectors for 6 additional USB 2.0 ports
1 x UltraDMA 133/100/66 (IDE)
6 x SATA 3 Gb/s ports Support RAID 0,1,0+1,JBOD
1 x CPU Fan connector
1 x Chassis Fan connector
1 x High Definition front panel audio connector
1 x System Panel connector
1 x 4 pin, ATX + 12V, power connector
1 x 24pin, EPS 12V power connector
1 x S/PDIF output connector

• Audio
VT1818S High Definition Audio 8-Channel CODEC
- Blu-ray disc audio layer Content Protection
- Optical S/PDIF out port at back I/O
- Support Jack-detection, Multi-streaming, and Front Panel Jack-Retasking technologies

• LAN
RTL8112L PCIe Gigabit LAN

• Rear Panel I/O Ports
1 x Parallel port
1 x PS/2 Keyboard
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O

• BIOS
8 Mb Flash ROM , AMI BIOS Pnp, DMI v2.0, Wfm2.0, ACPI v2.0a, SMBIOS V2.5

• Form Factor
ATX

• Dimensions
30.6 cm x 21.4 cm

• Package
Box

Гаранция: 36 месеца
