Asus m4a78 pro /amd780g/am2+

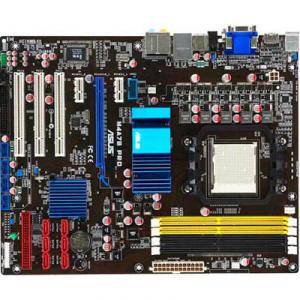

ASUS M4A78 PRO

• CPU
AMD Socket AM2+ / AM2 Phenom X4/Phenom X3/Athlon X2/Sempron Processors
Support AM3 Phenom II/Athlon X4/Athlon X3/ Athlon X2 Processors
AMD Cool 'n' Quiet™ Technology
Support 45nm Phenom II CPU
AMD 140W CPU Support

• System bus
Up to 5200 MT/s (HyperTransport™ 3.0 interface for AM3/AM2+ CPU)
2000 / 1600 MT/s for AM2 CPU

• Chipset
AMD 780G/SB700

• Memory
4 x DIMM, Max. 16 GB, DDR2 1066/800/667 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture

• VGA
Integrated ATI Radeon™ HD 3200 GPU
Max. shared memory: 512 MB
Supports HDMI™ Technology with max. resolution up to 11920×1080@1080P
Supports Dual-link DVI with max. resolution up to 2560x1600 @60Hz
Supports D-Sub with max. resolution up to 2560x1440 @ 75Hz
Hybrid CrossFireX™ Support
HDMI/DVI/D-Sub Support(Dual independent displays support with HDMI/DVI and D-Sub)
Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0
Hardware Decode Acceleration for H.264,VC-1, and MPEG-2

• Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe x1
3 x PCI 2.2

• Connectors
4 x USB connectors (8 ports)
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel
24-pin ATX Power connector
4-pin ATX 12V Power connector

• Audio
VIA1708S 8 -Channel High Definition Audio CODEC
Supports Jack-Detection, Multi-Streaming
Optical S/PDIF Out ports at back I/O
ASUS Noise Filter

• LAN
Atheros L1E Gigabit LAN controller featuring AI NET 2

• Rear Panel I/O Ports
1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x HDMI
1 x PS/2 Mouse
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O

• BIOS
8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2

• Form Factor
ATX

• Dimensions
30.5 cm x 24.4 cm

• Package
Box
