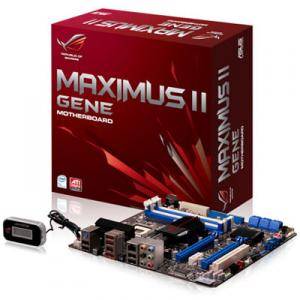

ASUS Maximus II GENE

• CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core / Celeron® Processors Support Intel® 45nm Multi-Core CPU

• Front Side Bus (FSB)
1600/1333/1066/800 MHz

• Chipset
Intel® P45 /ICH10R

• Memory
4 x DIMM, Max. 16 GB, DDR2 1300/1200/1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

• VGA
-

• Expansion Slots
2 x PCIe 2.0 x16 (single max @ x16,dual @ x8 speed)
1 x PCIe x1
1 x PCI 2.2

Support ATI CrossFireX™ Technology

• Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
7 x SATA connectors
1 x IDE connector for two devices
5 x Fan connectors: 1 x CPU / 2 x Chassis / 2 x Optional
Front panel audio connector
System Panel connector
2 x thermal sensor connectors
1 x LCD Poster connector
1 x SPDIF_OUT connector
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x En/Dis-able Clr CMOS header
1 x CD audio in

• Audio
SupremeFX X-Fi built-in
8 - Channel High Definition Audio CODEC
- EAX® Advanced™ HD 4.0
- X-Fi CMSS®-3D
- X-Fi Crystalizer™
- Creative ALchemy

• LAN
Gigabit LAN

• IEEE1394
2 x 1394a ports (1 port at back I/O, 1 port onboard)

• Rear Panel I/O Ports
1 x External SATA
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard port(purple) 1 x Clr CMOS switch

• BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS

• Form Factor
micro ATX

• Dimensions
24.4 cm x 24.4 cm

• Package
Box
