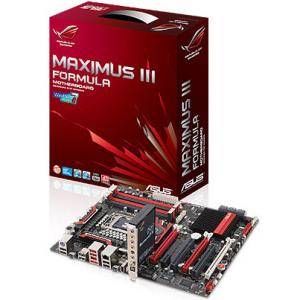

Asus maximus iii formula /p55

• CPU
Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/
Supports Intel® Turbo Boost Technology

• Chipset
Intel® P55 Express Chipset

• Memory
4 x DIMM, Max. 16 GB, DDR3 2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Supports Intel® Extreme Memory Profile (XMP)

• VGA
-

• Expansion Slots
2 x PCIe 2.0 x16 (red) support single at x16 or dual at x8 mode
1 x PCIe x16 (white) supports at x4 mode
2 x PCIe x1
2 x PCI 2.2

Supports NVIDIA® SLI™ Technology / ATI® CrossFireX™ Technology

• Connectors
3 x USB connectors support additional 5 USB 2.0 ports (1 port reserved for ROG Connect @ rear)
1 x IEEE 1394a connector
10 x SATA connectors: 2 x Speeding HDD SATA connectors (Red) / 2 x SATA_ODD (White) / 6 x standard SATA connectors (Gray)
8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional
3 x thermal sensor connectors
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x En/Dis-able Clr CMOS header
5 x ProbeIt measurement points
1 x ROG light connector
1 x Go Button
System panel connector

• Storage
Intel® P55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10

JMicron® 322 controller and 2 x JMicron® 363 controllers:
- 2 x SATA 3.0 Gb/s port (Red) supporting Hardware RAID 0 and 1 (SPD_HDD1 + SPD_HDD2)
- 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
- 2 x SATA 3.0 Gb/s port (White) - SATA_ODD1 + SATA_ODD2

• Audio
SupremeFX X-Fi discrete Audio Card
8-Channel High Definition Audio CODEC
EAX® Advanced™ HD 4.0
X-Fi CMSS®-3D
X-Fi Crystalizer™
Creative ALchemy
Supports 1 x S/PDIF out header
Supports Coaxial/Optical S/PDIF out ports on rear
Blu-ray support

• LAN
Realtek® RTL8110SC Gigabit LAN controller
GameFirst

• Rear Panel I/O Ports
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
1 x Clr CMOS switch
1 x ROG Connect On/Off switch
1 x PS/2 Keyboard port (purple)
9 x USB 2.0/1.1 (1 port for ROG Connect)

• BIOS
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS

• Form Factor
ATX

• Dimensions
30.5 cm x 24.4 cm

• Package
Box
