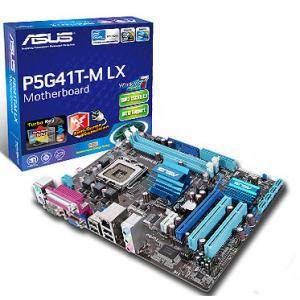

Asus p5g41t-m lx /g41/lga775

• CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm Multi-Core CPU

• Front Side Bus (FSB)
1333/1066/800 MHz

• Chipset
Intel® G41 / ICH7

• Memory
2 x240-pin DIMM, Max. 8 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

• VGA
Integrated Intel GMA X4500 graphics
Maximum shared memory of 1G
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX® 10

• Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

• Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x UltraDMA 100/66/33 (IDE)
4 x SATA 3 Gb/s ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x High Definition front panel audio connector
1 x S/PDIF Out connector
1 x System Panel
1 x Internal Speaker connector
24-pin EATX power connector
4-pin ATX 12V Power connector

• Audio
ALC887 8-Channel AUDIO CODEC
*Choose the chassis with HD audio module in front panel to support 8-Channel audio output
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface

• LAN
PCIe Gb LAN

• Rear Panel I/O Ports
1 x D-Sub
1 x Parallel port
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks

• BIOS
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

• Form Factor
micro ATX

• Dimensions
24.4 cm x 20.1 cm

• Package
Box

Гаранция: 36 Месеца
