Asus p5n7a-vm/gf9300/lga775

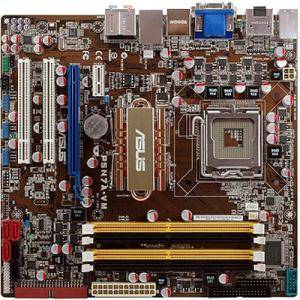

ASUS P5N7A-VM

• CPU
Socket 775 for Intel Core 2 Quad/Core 2 Extreme/Core 2 Duo/Pentium D/Celeron dual-core/Celeron Processors Compatible with Intel 05B/05A/06 processors
Support Intel 45nm CPU
Intel Hyper-Threading Technology ready

• Front Side Bus (FSB)
1333/1066/800 MHz

• Chipset
NVIDIA GeForce 9300/nForce 730i

• Memory
4 x DIMM, Max. 16 GB, DDR2 800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

• VGA
Integrated GeForce 9300 GPU
Hybrid SLI support (support Windows Vista only)
CUDA support
PhysX support
Maximus shared memory of 512MB
Integrated GeForce Series DirectX 10 Shader Model 4.0 graphics processor
Supports HDMI interface with HDCP compliant with max. resolution up to 1920x1200 (1080p) @70Hz
Supports DVI interface with HDCP compliant with max. resolution up to 1600x1200 @60Hz
Supports D-Sub with max. resolution up to 2048x1536, Horizontal:115KHz Vertical:75Hz
Supports DP with max. resolution up to 2560x1600 @60Hz

• Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

• Connectors
3 x USB connectors support additional 6 USB ports
3 x Fan Connectors: CPU(1) / Chassis(1) / Power Fan(1) connector
Front panel High Definition audio connector
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD audio in connector
1 x 24-pin EPS Power connector
1 x 4-pin ATX 12V Power connector
System Panel

• Audio
Realtek ALC1200 8 -Channel High-Definition Audio CODEC

• LAN
Gigabit LAN

• Rear Panel I/O Ports
1 x PS/2 KB/MS Combo
1 x Optical SPDIF
1 x DP
1 x HDMI port
1 x VGA port
1 x DVI port
1 x ESATA port
1 x LAN (RJ45) port
6 x USB 2.0
8 Channel Audio I/O

• BIOS
8 Mb Flash ROM
AMI BIOS, Green,PnP,DMI v2.0,Wfm2.0,ACPI v2.0a, SMBIOS v2.5

• Form Factor
micro ATX

• Dimensions
24.4 cm x 23.4 cm

• Package
Box
