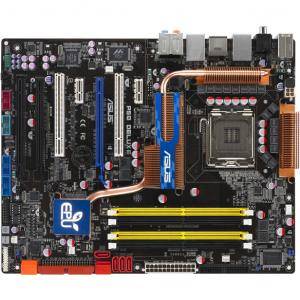

Asus p5q deluxe /p45/lga775

• CPU
Socket LGA775, supporting Intel Core 2 Quad / Core 2 Duo / Core 2 Extreme / Pentium EE / Pentium D / Pentium4 / Celeron processors, 05B/05A/06 processors

• Front Side Bus (FSB)
1600/1333/1066/800 MHz

• Chipset
Intel P45 + ICH10R, supports Intel FMAT

• Memory
4 DDR DIMM slots, supports Dual-channel DDR2 1200/1066/800/667, Max. 16GB

• VGA
-

• Expansion Slots
2 x PCI-E x16, support ATI CrossFireX technology at x8 link
1 x PCI-E x16, at max. x4 link
2 x PCI-E x1
2 x PCI 2.2

• Connectors
6 x SerialATA II (3.0Gb/s), support RAID 0,1,10,5
1 x ATA 133/Ultra DMA Mode 6
1 x eSerialATA II (3.0Gb/s)
2 x SerialATA II (3.0Gb/s)
2 x USB 2.0 headers
1 x IEEE1394 connector
1 x COM port header
1 x S/PDIF connector

• Audio
ADI AD2000B 8-channel High Definition Audio CODEC, Support Multi-streaming, Jack-sensing and Jack-retasking functions, S/PDIF out interface

• LAN
Dual Gigabit LAN controllers
Marvell 88E8056/88E8001 Gigabit LAN controller featuring AI NET2, Teaming and Redundant

• IEEE1394
LSIL-FW3227 controller

• Rear Panel I/O Ports
1 x Keyboard/Mouse PS2 combo
6 x USB 2.0
2 x RJ45
1 x IEEE1394
1 x eSATA II
1 x S/PDIF out (coaxial)
1 x S/PDIF out (optical)
1 x Audio 8ch

• BIOS
16Mb AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4

• Form Factor
ATX

• Dimensions
30.5x24.4 cm

• Package
Box

Гаранция: 36 месеца
