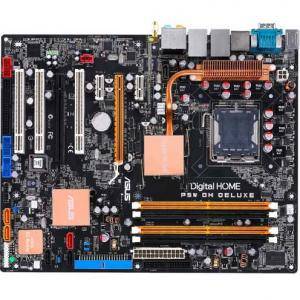

Asus p5w dh deluxe /975x/775

• CPU
Socket LGA775, supporting Intel Core Duo / Core Duo Extreme / Pentium EE / Pentium D / Pentium4 / Celeron processors, 04B/04A & 05B/05A processors

• Front Side Bus (FSB)
1066/800/533 MHz

• Chipset
Intel 975X + ICH7R, supports Hyper-Threading Technology, EM64T

• Memory
4 DDR DIMM slots, supports Dual-channel DDR2 800/667/533 ECC, Max. 8GB, Intel Memory Pipeline Technology

• VGA
-

• Expansion Slots
2 x PCI-E x16, supports ATI CrossFire graphic cards (x8 both)
2 x PCI-E x1
3 x PCI

• Connectors
3 x SerialATA II (3.0Gb/s), support RAID 0,1,5,Intel Matrix Storage
2 x SerialATA II (3.0Gb/s), support RAID 0,1
1 x ATA 100/Ultra DMA Mode 5
Support RAID 10 cross controllers
3 x eSerialATA II (3.0Gb/s), support RAID 0,1,JBOD
1 x ATA 133/Ultra DMA Mode 6
1 x floppy connector, up to 2 FDD
2 x USB 2.0 headers
1 x IEEE1394 connector
1 x S/PDIF connector
1 x MP3-In connector

• Audio
Realtek ALC882M High Definition Audio 8-channel CODEC, Support Multi-streaming, Jack-sensing and Jack-retasking functions, S/PDIF out interface

• LAN
2 x Marvell 88E8053 Gigabit LAN Controller, both featuring AI NET2
Wireless LAN: 54Mbps IEEE 802.11g (ASUS WiFi-AP Solo)

• IEEE1394
T.I. 1394a controller

• Rear Panel I/O Ports
1 x Keyboard PS2
1 x Mouse PS2
4 x USB 2.0
1 x Serial
1 x eSATA
2 x RJ45
1 x IEEE1394
1 x WiFi-AP Solo antenna jack
1 x S/PDIF out (optical)
1 x S/PDIF out (coaxial)
1 x Audio 8ch

• BIOS
8 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3

• Form Factor
ATX

• Dimensions
30.5x24.5 cm

• Package
Box

Гаранция: 36 месеца
