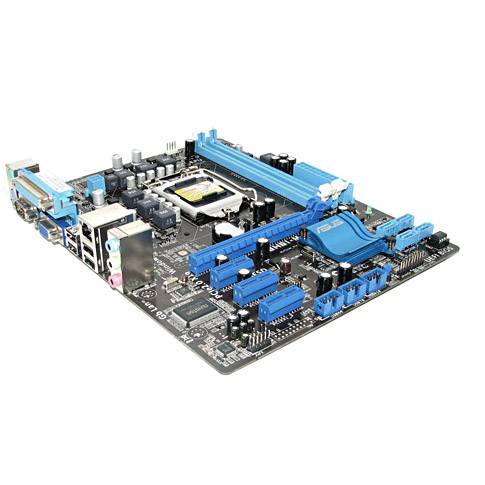

Asus p8h61-m lx/c/si /1155

• CPU
LGA1155 Socket for Intel® 2nd Generation Core™ i7 / Core™ i5 / Core™ i3 processors
Supports 32nm CPU
Supports Intel® Turbo Boost Technology 2.0

• Chipset
Intel® H61 (B3) Express Chipset

• Memory
2 x DIMM, max. 16 GB, DDR3 1333/1066 MHz, Non-ECC, un-buffered memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)

• VGA
Intel® Quick Sync Video Technology Support
Supports Microsoft® DirectX 10.1
Supports D-Sub with max. resolution up to 2048x1536 @75Hz

• Expansion Slots
1 x PCIe 2.0 x16
3 x PCIe 2.0 x1

• Connectors
3 x USB 2.0/1.1 connector(s) support additional 6 USB 2.0/1.1 ports
4 x SATA 3.0Gb/s
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x Speaker connector
1 x System Panel connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector

• Storage
Intel® H61 Express Chipset
4 x SATA 3.0 Gb/s ports

• Audio
ALC887 8-Channel High Definition Audio CODEC
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

• LAN
Realtek® 8111E PCIe Gigabit LAN controller

• Rear Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x D-Sub
1 x LAN(RJ45) port(s)
1 x COM port
1 x LPT port
4 x USB 2.0/1.1
3 x Audio jacks

• BIOS
32 Mb Flash ROM UEFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS

• Form Factor
micro ATX

• Dimensions
24.4 cm x 19.3 cm

• Package
Bulk

 Гаранция: 36 Месеца
