Asus rampage ii gene /x58/1366

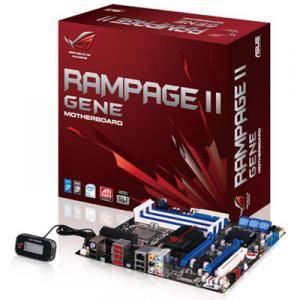

ASUS Rampage II GENE

• CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology

• System Bus
Up to 6400 MT/s with QuickPath Interconnection

• Chipset
Intel® X58 /ICH10R

• Memory
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory
Triple channel memory architecture
* Supports Intel® Extreme Memory Profile (XMP)

• VGA
-

• Expansion Slots
2 x PCIe 2.0 x16 support at dual x16 speed
1 x PCIe 2.0 x4
1 x PCI 2.2

Support NVIDIA SLI™ / ATI CrossFireX™ Technology

• Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x IDE connector for two devices
7 x SATA connectors
5 x Fan connectors: 1 x CPU / 2 x Chassis / 2 x Optional
2 x thermal sensor connectors
1 x IEEE1394a connector
1 x LCD Poster connector
1 x Chassis Intrusion connector
24-pin ATX Power connector
8-pin ATX 12V Power connector
1 x En/Dis-able Clr CMOS header
1 x Front panel audio connector
1 x CD audio in
System panel connector

• Audio
SupremeFX X-Fi onboard 8 -Channel High Definition Audio CODEC
EAX® Advanced™ HD 4.0
X-Fi CMSS®-3D
X-Fi Crystalizer™
Creative ALchemy
Supports Optical S/PDIF out ports on rear

• LAN
Realtek® 8111C PCIe Gigabit LAN controller featuring AI NET2

• IEEE1394
2 x 1394a ports (1 port at back I/O, 1 port onboard)

• Rear Panel I/O Ports
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard port(purple)
1 x S/PDIF (Optical)
1 x Clr CMOS switch

• BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS

• Form Factor
micro ATX

• Dimensions
24.4 cm x 24.4 cm

• Package
Box
