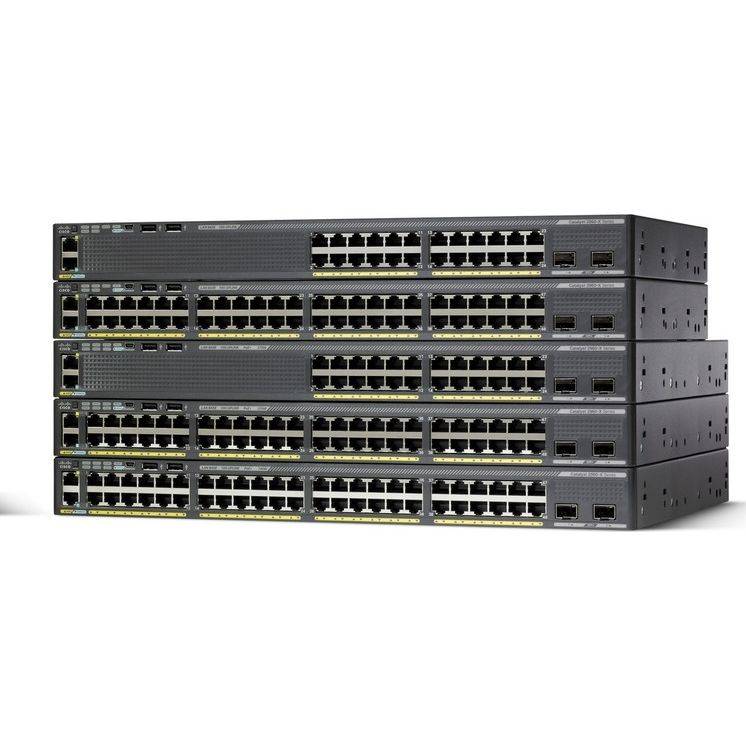

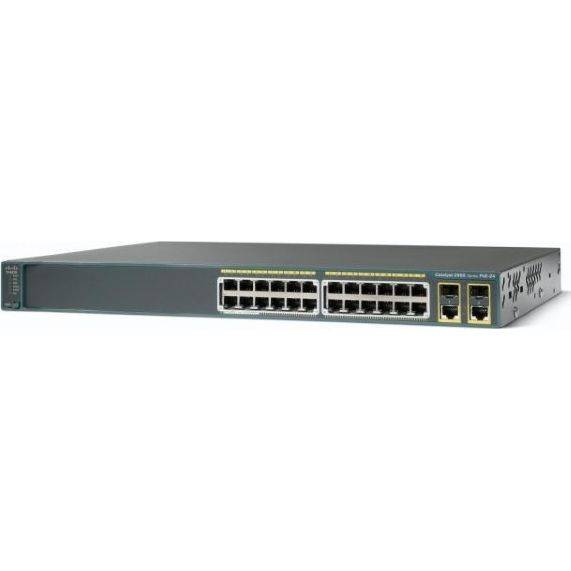

Cisco catalyst 2960-x 24 gige, 4 x 1g sfp, lan base - ws-c2960x-24ts-l

Комутатор Cisco Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite

Суич, тип Fixed Port

Общ брой портове 28

Основни портове, тип 24x10/100/1000Base-T

Uplink портове 4xSFP

Управление CLI for detailed configuration and administration, DHCP, Internet Group Management
Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP
Stackable FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)

Fans Fanless design

Захранване One fixed power-supply and options for an external redundant power supply source (RPS2300). The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.

Routing Layer 2 Only

Памет (Flash, RAM) Flash memory: 128 MB; RAM: 512 MB DRAM

Капацитет за маршрутизиране/превключване, Gbps 216 Gbps

Пропускателна способност, Mpps 71.4 Mpps

VLAN (брой, стандарти) Maximum active VLANs: 1023; IEEE 802.1Q VLAN

QoS Up to eight egress queues per port (four on the 2960-X or when stacking the 2960-XR) and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic; SRR; WTD; 802.1p class of service; DSCP; Rate limiting

L2 мреживи стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1ae, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah

IPv6 functionality IPv6 Ready Logo

Сигурност Cisco TrustSec, 802.1X, Cisco Threat Defense, Private VLANs, RPF, ACLs, SSH, SPAN, TACACS+ and RADIUS authentication, MAC Address Notification, Multilevel security on console access, BPDU guard, STRG, IGMP filtering, Dynamic VLAN assignment

Размери, mm 445 x 279 x 45 mm, 1U Height

System Software: LAN Base
