Cm cm-690 pure w/side window

• Dimension (W / H / D)
(W)213 X (H)482 x (D)525 mm

• Weight
9.8 kg

• Material
Chassis: SECC, Bezel: Metal mesh+ABS
With Transparent Acrylic Side Window Panel

• Motherboards
ATX, Micro-ATX

• 5.25" Drive Bay
5 Exposed (without the use of exposed 3.5 inch Drive Bay),
4 Exposed (with the use of 3.5 inch Drive Bay)

• 3.5" Drive Bay
5 Hidden,
1 Exposed (converted from one 5.25 inch Drive Bay)

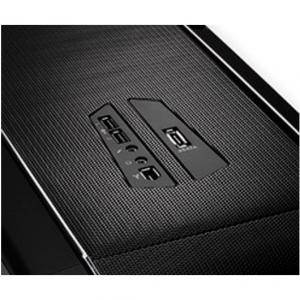

• I/O Panel
USB 2.0x2, IEEE 1394 x1, MIC x1, eSATA x 1,
SPK x1 (support HD Audio)

• Cooling System
Front :120 mm Blue LED fan x 1, 1200 rpm, 21 dBA,
Rear : 120 mm standard fan, 1200 rpm, 21 dBA,
Top : 120 or 140 mm fan x 2 (optional),
Bottom : 120 mm fan x 1 (optional),
Left: 120mm fan x 2 (one is optional)-up to 140mm fans

• Expansion Slots
7

• Power Supply
Standard ATX PS2/ EPS 12V (optional)

• Certification
nVIDIA SLI
