Gb ep45-ud3 /p45/lga775

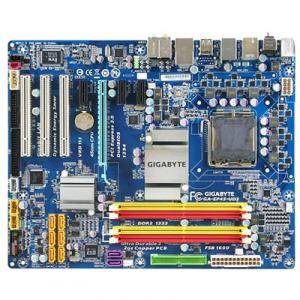

GIGABYTE GA-EP45-UD3

• CPU
Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor Extreme Edition/Intel Pentium D processor/ Intel Pentium 4 processor Extreme Edition/Intel Pentium 4 processor/ Intel Celeron processor in the LGA 775 package

• FSB
1600/1333/1066/800 MHz

• Chipset
North Bridge: Intel P45 Express Chipset
South Bridge: Intel ICH10

• Memory
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR2 1366+*/1066/800/667 MHz memory modules

• VGA
-

• Expansion Slots
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
3 x PCI Express x1 slot
3 x PCI slots

• Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x parallel port header
1 x serial port header
1 x power LED header
1 x chassis intrusion header

• Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In

• LAN
Realtek 8111C chip (10/100/1000 Mbit)

• IEEE1394
T.I. TSB43AB23 chip

• Rear Panel I/O Ports
1 x PS/2 mouse port
1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF Out connector
8 x USB 2.0/1.1 ports
2 x IEEE 1394a ports
1 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line

• BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for Dual BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Form Factor
ATX

• Dimensions
30.5 x 24.4 cm

• Package
Box

Гаранция: 36 месеца
