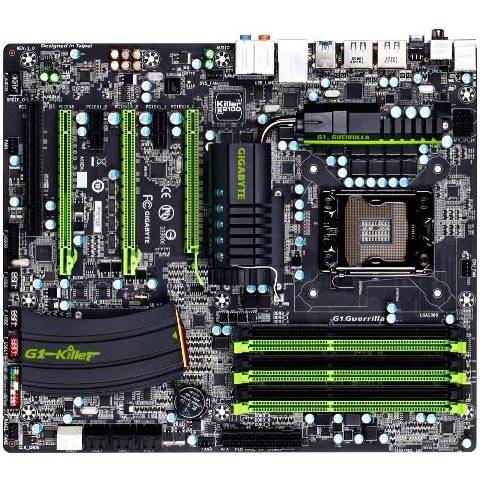

Gb g1.guerrilla /x58/lga1366

• CPU
Support for an Intel ® Core™ i7 series processor in the LGA1366 package

• QPI
4.8GT/s, 6.4GT/s

• Chipset
North Bridge: Intel® X58 Express Chipset
South Bridge: Intel® ICH10R

• Memory
6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory
3/Dual channel memory architecture
Support for DDR3 2200/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

• VGA
-

• Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot and the PCIEX8 slot. The PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8 is populated.
(The PCIEX16_1, PCIEX16_2 and PCIEX8 slots conform to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
1 x PCI slot

Support for 3-Way/2-Way NVIDIA SLI technology and 3-Way/2-Way ATI CrossFireX™ technology

• Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
3 x fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x clearing CMOS jumper
1 x heatsink LED power connector

• Storage Interface
South Bridge:
6 x SATA 3Gb/s connectors (SATA2_0~SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Marvell 88SE9182 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0 and RAID 1

JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD

• Audio
Realtek ALC889 codec
Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

• LAN
1 x Bigfoot Killer E2100 chip (10/100/1000 Mbit)

• Rear Panel I/O Ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF Out connector
1 x CPU overclocking button
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
2 x eSATA/USB Combo connectors
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

• BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS ™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Form Factor
ATX

• Dimensions
30.5cm x 26.3cm

• Package
Box

 Гаранция: 36 Месеца
