Lenovoemc px4-400d network storage array,16tb (4hdx4tb) hot-swap, intel® atom d2701 dual core 2.13ghz,2gb,3year - 70cj9003ea

LenovoEMC px4-400d Network Storage Array,16TB (4HDx4TB) hot-swap, Intel® Atom D2701 Dual Core 2.13GHz,2GB,3Years

Спецификация

Part No. 70CJ9003EA
Model No. px4-400d
Number of hdd slots 4
Raid 0, 1, 10, 5
Network ports 2
Port type 10/100/1000 Mbps
Communication ports 4 x USB 2.0
Installed capacity 16 TB
Number of disks installed 4
Maximum capacity 16 TB
Chassis Desktop

Description Lenovo EMC PX4-400D Network Storage

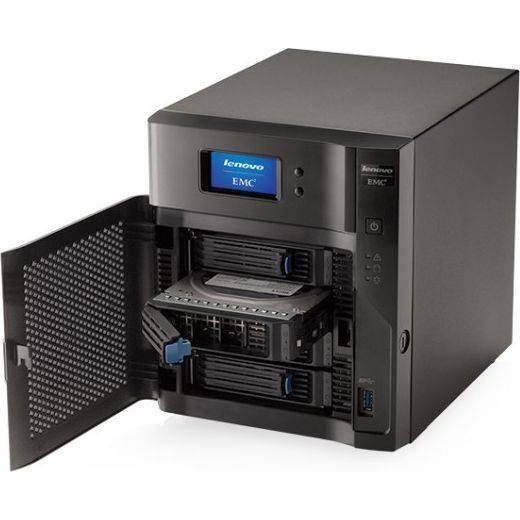

Form Factor Desktop form factor; supports up to 4 3.5" SATA HDDs (trays included)
Processor Intel® Atom D2701 Dual Core 2.13GHz
Memory 2GB DDR3
Ethernet 2 10/100/1000 Mbps Ethernet ports (RJ45 connector)
Configurations - Diskless option - bring your own hard drives
- Storage pools with RAID expansion, migration, and hot spares
- Advanced RAID levels including hot spare
RAID Support - RAID 0, 1, 10, 5, hot spare
- Note: RAID/storage pool should be the same capacity, speed, and manufacturer. Mixing different types of drives may result in unpredictable behavior.
Power Consumption - Max: 55W
- Min: 35W (drives spun down)
- Peak: 100W for 6s
- Note: These values represent a fully loaded device with the highest capacity HDD. Values may differ with other configurations.
iSCSI Support Supports both file and block storage pools, 256 hosts maximum with the following parameters - Block storage pools: 32 LUNs maximum per pool; 128 LUNs maximum per device. File storage pools: 256 LUNs maximum per pool; 256 LUNs maximum per device.

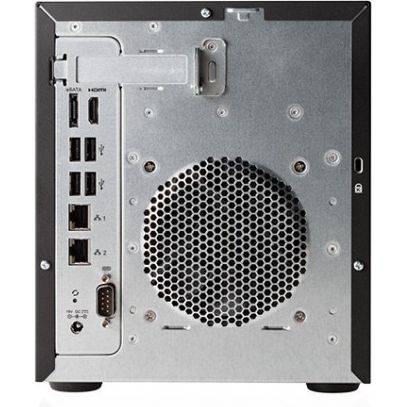

Ports - 1 USB 3.0
- 4 USB 2.0
- 2 Ethernet
- 1 eSATA
- 1 HDMI Video
LAN Standards - IEEE 802.3
- IEEE 802.3u
AC Voltage 100-240 VAC, 50-60Hz
Acoustic Noise 35.0 dBA maximum
Temperature, Humidity and Altitude - Ambient Temp - Operating: 10° to 40° C; Non-Operating: -40° to 60° C
- Temp Gradient - Operating: 12° C per hour
- Humidity (non-condensing) - Operating: 8% to 85% R.H.; Non-Operating: 5% to 95% R.H.
- Max Wet Bulb - Operating: 26.6° C; Non-Operating: 29.4° C
- Altitude - Operating: to 7,500 feet; Non-Operating: to 40,000 feet
User Interface Localization User interface localized for English, French, Italian, German, Spanish, Brazilian Portuguese, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese, Arabic, Hebrew, Turkish, Swedish, Dutch, and Polish
System Requirements - Available 10/100/1000 Mbps network Ethernet port
- Internet Explorer 7, Firefox® 3.x, Chrome 9, Safari 4 or later browser
- Personal cloud and remote access require an internet connection; UPnP™ compatible router or administrative rights to port forward; 2.5 Mbit/s download, 500Kbit/s upload (not compatible with Active Directory or XP 64 bit)
- PC Users: Microsoft Windows XP / Vista / 7 / 8
- Mac® Users: Mac OS X 10.6 - 10.8
- Linux® Users: Redhat Enterprise 6, Ubuntu 11, OpenSUSE 11.4, other compatible Linux versions

Number of Users
Up to 75 users

Processor
Built around the Intel® Atom D2701 dual core processor to support demanding workloads like virtualization, deduplication, database management and video surveillance.

Acronis ATI Lite
Complete backup protection throughout your small business network with Acronis.
- Protect your PCs with ATI Lite 2013 (3 licenses included)
- Optional Acronis ABR 11.5 OEM Server and NAS application (sold separately) delivers automatic and continuous backup protection for your Windows or Linux Server and NAS.

Active Snapshot Backup
Point-In-Time backup of a complete volume image including Active Snap capability. Also uses .VSS and .VDS for compatibility with Windows & VMware hosts.

Active Directory High-Availability & Hybrid Authentication
Windows Active Directory High Availability (ADHA), Hybrid Authentication, MSCS and Hyper-V Live Migration support.

SSD Caching for Faster Read & Write
Set up dedicated SSDs for fast reads & writes of frequently accessed data, providing improved performance for I/O intensive applications such as databases.

Video Management Software
Embedded video management software that simplifies video surveillance. Automated configuration, wide camera compatibility, motion detection, live monitoring, playback and easy export.

Leading Software Application Options Included
Applications can be installed using the embedded application manager for McAfee VirusScan Enterprise, Acronis Backup & Recovery, EMC Avamar Client, Milestone Arcus Video Surveillance and Mindtree SecureMind VSMS.

LenovoEMC Personal Cloud Backup
Synchronize data between personal cloud member systems and your Network Storage device.
