Lenovoemc px6-300d network storage array,18tb (6hdx3tb) hot-swap, intel atom d525 processor( 1.80ghz 1mb),2gb,3year - 70b99006ea

LenovoEMC px6-300d Network Storage Array,18TB (6HDx3TB) hot-swap, Intel Atom D525 Processor( 1.80GHz 1MB),2GB,3Years

Спецификация

Part No. 70B99006EA
Number of hdd slots 6
Raid 6, 0, 1, 5, X-Raid, 10
Network ports 2
Port type 10/100/1000 Mbps
Installed capacity 18 TB
Number of disks installed 6
Maximum capacity 24 TB
Chassis Desktop
Warranty 3 years
Dimensions H, cm 27
Dimensions W, cm 17.6
Dimensions D, cm 25.7
Weight, kg 8.81

• Desktop form factor

• Intel Atom Dual Core D525 CPU @ 1.8GHz, 2GB RAM

• 6 x 3.5” Hot swap SATA-II hard disk drives

• Two (2) 10/100/1000 Mbps Ethernet ports (RJ 45 connector)

• 1 x USB 3.0 ports and 2 x USB 2.0 ports

• RAID Support: RAID 0, 1, 10, 5, 6, and hot spare (RAID/storage pool should be the same capacity, speed, and manufacturer. Mixing different types of drives may result in unpredictable behavior)

• iSCSI: Supports both file and block storage pools, 256 hosts maximum with the following parameters;

o Block storage pools; 32 LUNS maximum per pool. 128 LUNs maximum per device.

o File storage pools; 256 LUNs Maximum per pool. 256 LUNs maximum per device.

• LAN standards: IEEE 802.3, IEEE 802.3u

• AC Voltage 100-240 VAC, 50-60 Hz

Power Consumption

o Max: 75W

o Min: 35W (drives spun down)

o Peak: 150W for 5s NOTE: These values represent a fully loaded device with the highest capacity HDD. Values may vary with other configurations.

Acoustic noise – 32.6 dBA maximum

User interface localized for English, French, Italian, German, Spanish, Brazilian Portuguese, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese, Arabic, Hebrew, Turkish, Swedish, Dutch, and Polish

Contents

• Lenovo® EMC® px6-300d Network Storage

• Ethernet cable

• Power supply

• Printed Quick Start Guide

• Software Download (with): LenovoEMC™ Storage Manager software, User Help Documentation

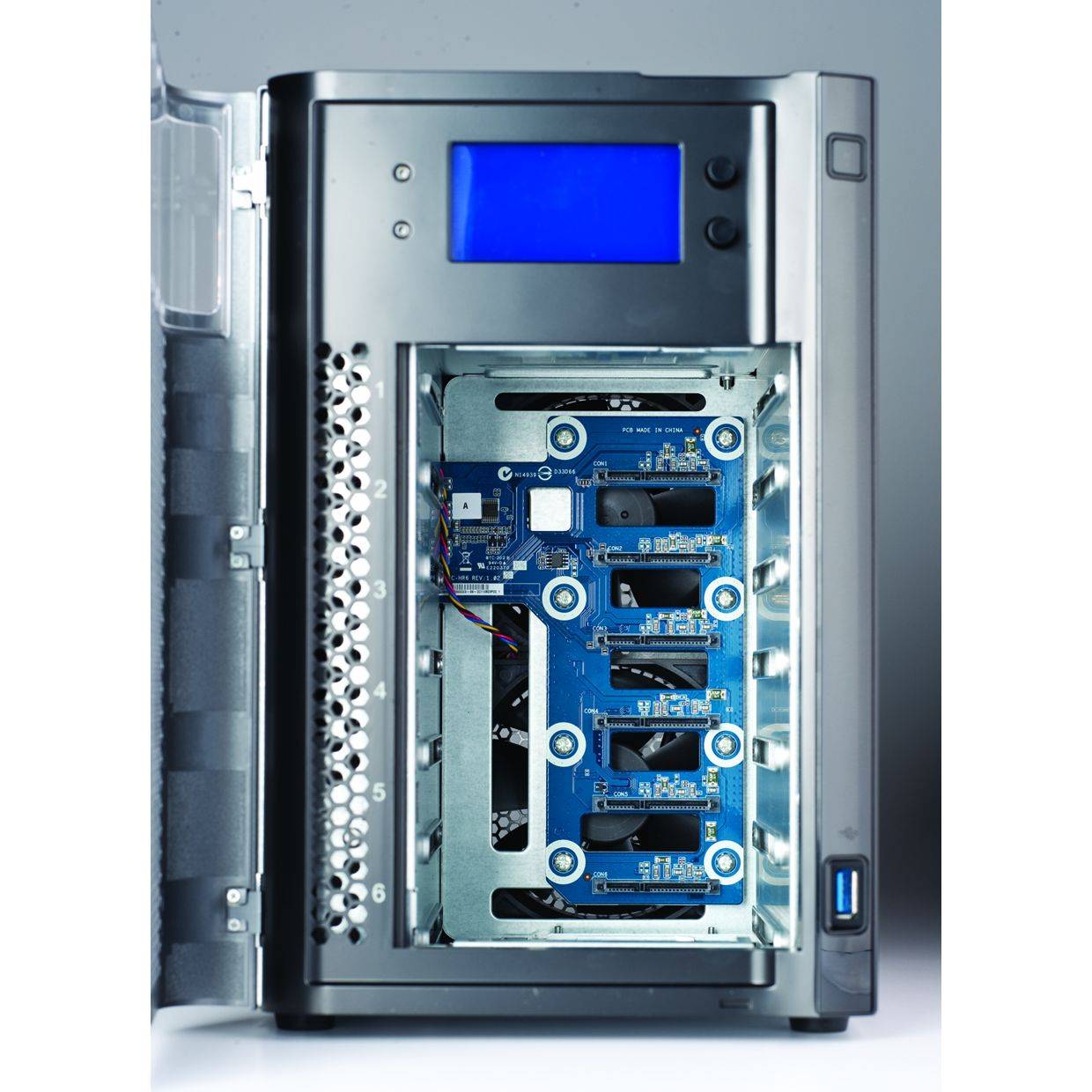

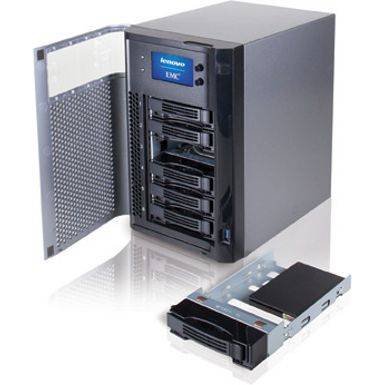

Capacity: 0 – 24TB. 6 x SATA HDD bays. Empty bays are fitted with a drive carrier. Carrier can accommodate 2.5” and 3.5” drives.

Snapshots: Point-In-Time backup of a complete volume image including Active Snap capability. Also uses .VSS and .VDS for compatibility with Windows & VMware hosts.

SSD Support: For I/O intensive applications, the px6-300d can be fitted with solid state drives to boost performance.

SSD Cache Pools - Set up dedicated SSDs for fast reads & writes of frequently accessed data, providing improved performance for I/O intensive applications such as databases. SSD drives sold separately.

RAID Support: RAID 1, 10, 5, 6, hot spare; automatic RAID rebuild and hot swap. RAID 0 and JBOD mode also available.

Network File Protocols Supported: CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, SFTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP.

Dual Gigabit Ethernet connectivity with high performance embedded architecture.

iSCSI target provides block-level access for the most efficient storage utilization, especially for backup, database and email application performance. It can be used in parallel with file-level storage access via CIFS/NFS. Includes support for SCSI-3 persistent reservations.

High-Performance

• Solid state drives (optional)

• Intel Atom Dual Core Processor, 2GB memory

• Dual GbE NICs

Flexible Configurations

• Diskless option, bring your own drives

• Storage pools with RAID expansion, migration and hot spares

• Advanced RAID levels including Hot Spare

Business-class features

• Windows Active Directory High-Availability (ADHA), Hybrid Authentication, MSCS and Hyper-V Live Migration support

• Built-in, real-time on-access and automatic anti-Virus scanning and cleaning using the embedded McAfee® VirusScan® Enterprise

Built-in Cloud Technology

• EMC Atmos Cloud Connector

• EMC Avamar data deduplication

• LenovoEMC™ Personal Cloud

• Mozy™

• Amazon S3

Advanced Networking Capabilities:

• NIC bonding for failover and load balancing including 802.3ad link aggregation.

• Jumbo frame support for 4000 and 9000 byte payloads. VLAN Tagging capability to IEEE 802.1Q standard.

• iSCSI persistent reservations for clustered Microsoft environments.

Data Replication / Device to Device Data Copy Jobs:

• Easily copy files to and from attached USB drives or any network share – including LenovoEMC Personal Cloud locations – using the secure rsync or CIFS protocol.

• Define your Copy Job to copy/synchronize files to and from connected drives and/or any other shared storage on your network.

• Schedule jobs to run on a predetermined schedule.

Application Manager:

Third party applications can be installed using the embedded application manager.

Data Organization and Access: Windows DFS organizes folders and files on a network, such that they appear to be all in one directory tree on a single Lenovo storage system, even if the folders reside on many devices in many different locations. WebDAV (Web-based Distributed Authoring and Versioning) enables viewing, adding, or deleting files on a Lenovo storage device from the web, via HTTP or HTTPS for added security.
