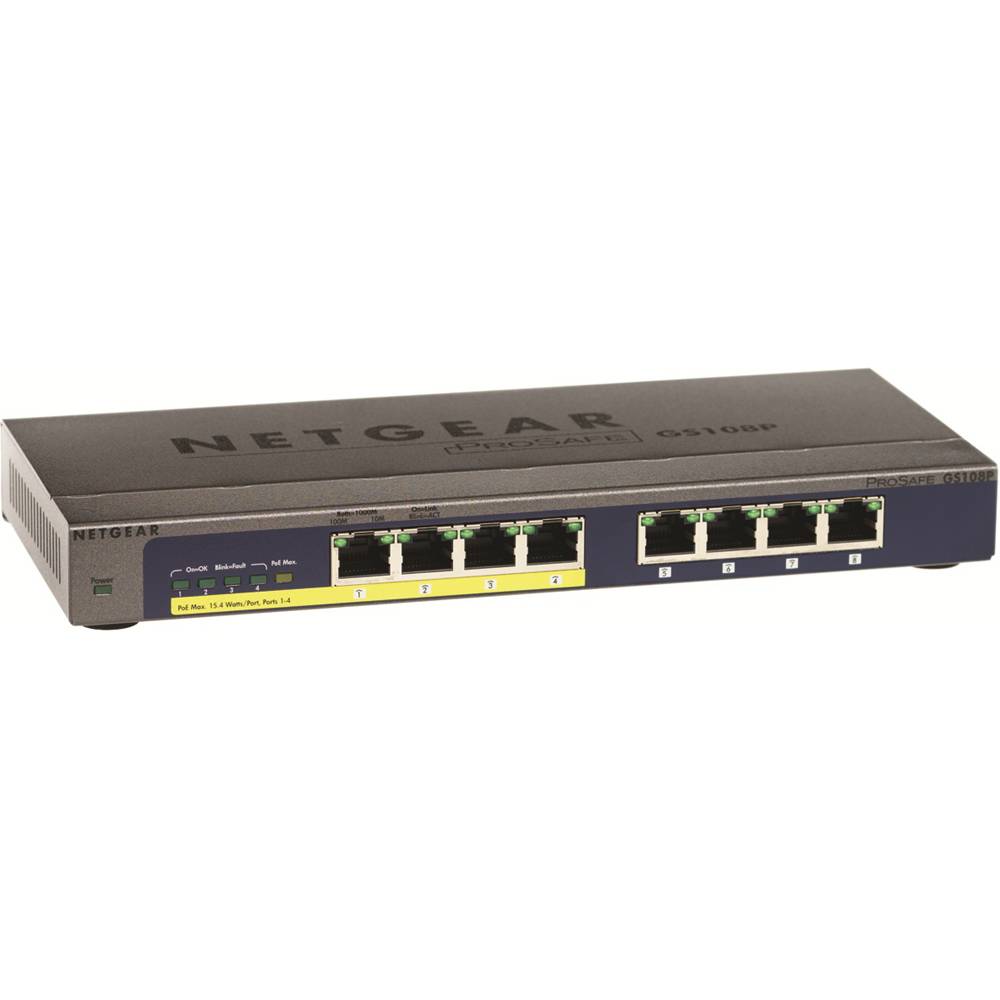

Netgear 8 x 10/100/1000 gigabit switch with 4 x poe - gs108p-100eus

Network Protocol and Standards Compatibility:
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x flow control
IEEE 802.3af DTE power via MDI

---

Power Supply:
Total power consumption: 60W maximum
802.3af power consumption: 50W maximum (ports 1– 4)
48V DC, 1.25A power output; plug is localized to country of sale

---

Network Ports:
8 auto speed-sensing 10/100/1000 RJ-45 ports

---

Performance Specifications:
Forwarding mode: Store-and-forward
Queue buffer memory: 192 KB per port
Bandwidth: 16 Gbps (non-blocking)
Forwarding rate:
- 10 Mbps port: 14,880 packets/sec
- 100 Mbps port: 148,800 packets/sec
- 1000 Mbps port: 1,488,000 packets/sec
Latency (using 1500-byte packets):
- 10 Mbps: 30μs (max)
- 100 Mbps: 6μs (max)
- 1000 Mbps: 4μs (max)
MAC address database: 4K

---

Electromagnetic Emissions:
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
C-Tick
EN 55022 (CISPR 22) Class B

---

Environmental Specifications:
Operating temperature: 32° to 122° F (0° to 50° C)
Storage temperature: -4° to 158° F (-20° to 70° C)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum

---

Status LEDs:
System: Power, PoE maximum power
Per port: Link, activity, speed, PoE active, PoE fault

---

Safety:
CE mark, commercial
CE/LVD EN 60950

---

Package Contents:
ProSafe® 8-port 10/100/1000 Gigabit Switch with 4-port PoE (GS108P)
AC adapter
Wall-mount kit
Installation guide
Warranty/support information card

---

Размери (HxWxD): 27 x 235 x 103 mm
Тегло: 0.716 kg


Гаранция: 24 месеца
